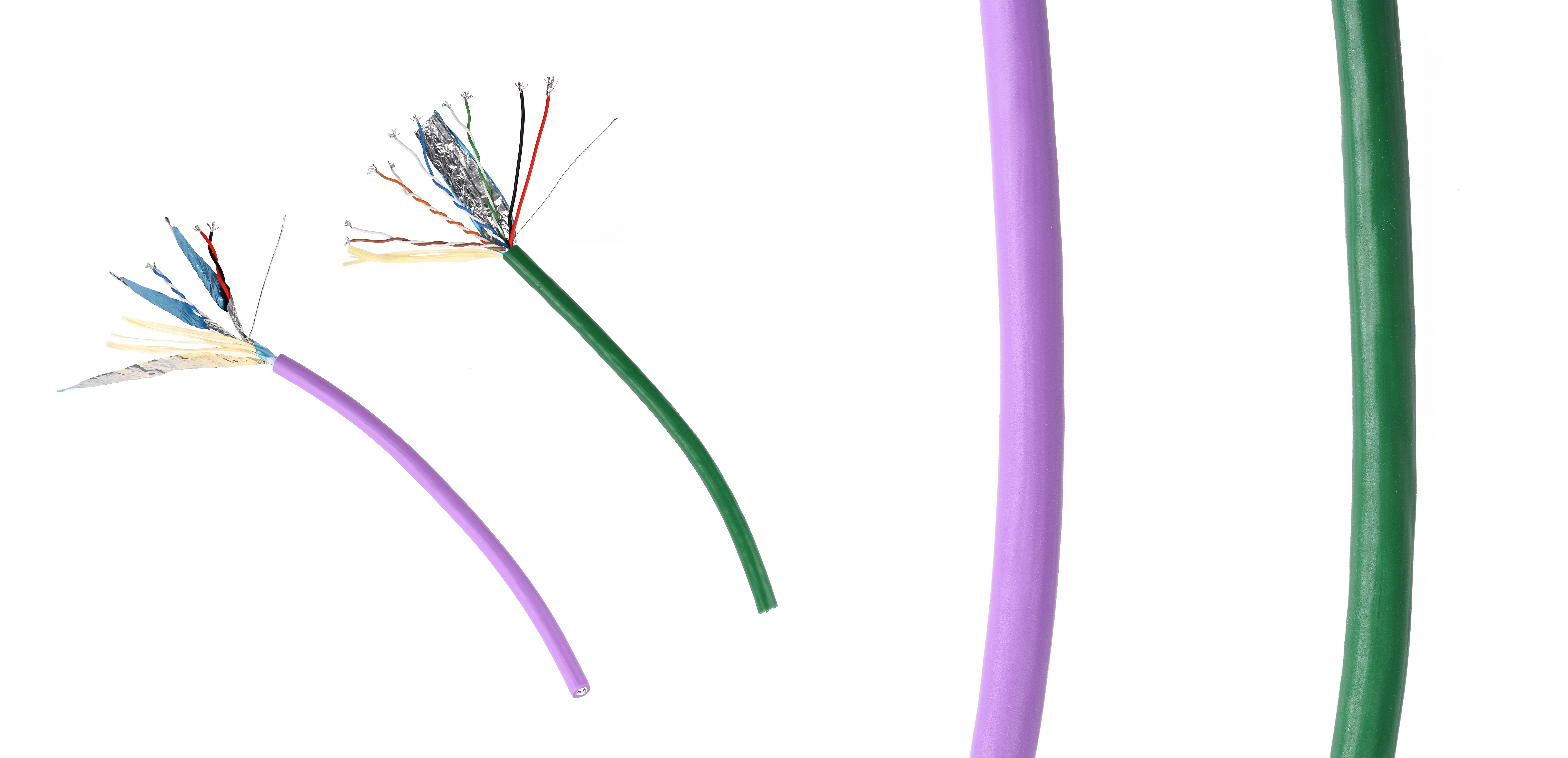

Description
This underwater shielded cable is suitable for subsea environments including fresh water and seawater. Designed for underwater robots and subsea accessories, it can operate submerged together with equipment, yet waterproof sealing must be implemented at both cable ends.
The conductor core and outer jacket adopt specially optimized materials for reliable bonding with resin or vulcanizing compound. Kevlar filling inside delivers superior tensile strength.
The shielded cable is optimized for data communication, incorporating aluminum foil shielding and drain wires. It is widely applied to industrial bus signals such as CAN bus and RS485, as well as network devices including Ethernet and USB-connected network cameras.
Shipping List
- Cable of Corresponding Specifications× N meters
Specifications
| Item | SKU | OD | Core Color |
|---|---|---|---|

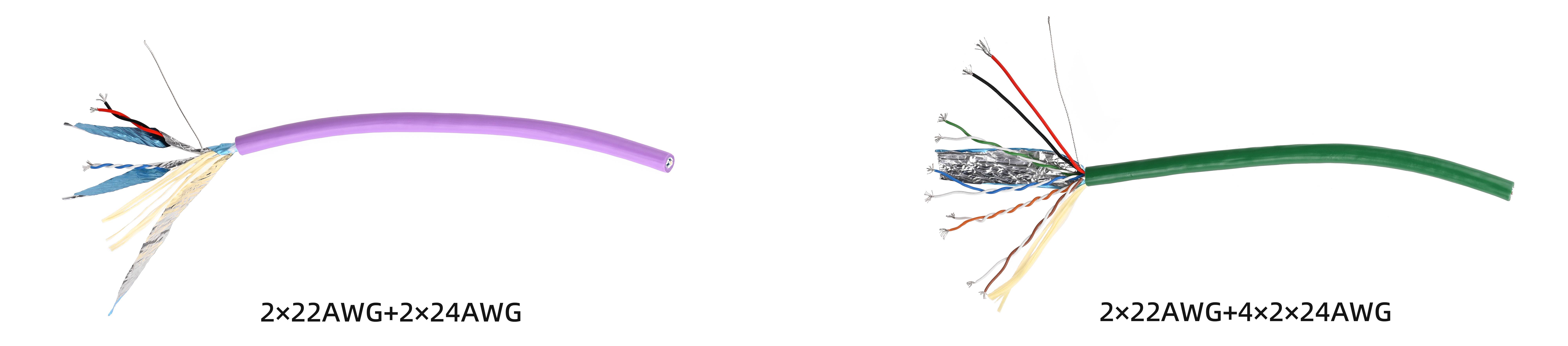

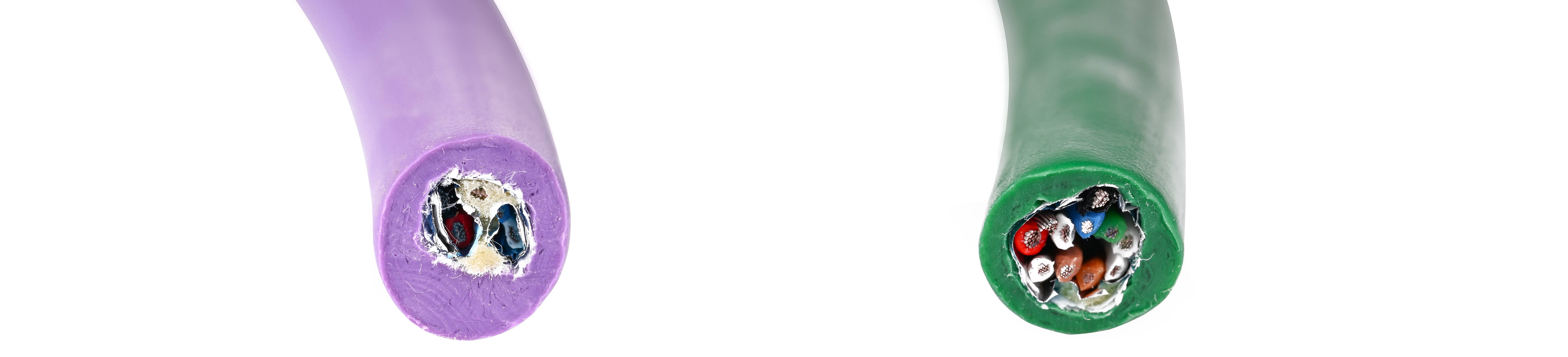

| 2×22AWG+2×24AWG Underwater Shielded Cable | 13010205-0001 | 7.5±0.2 | Red-Black, White-Blue |
| 2×22AWG+4×2×24AWG Underwater Shielded Cable | 13010205-0002 | 7.5±0.2 | Red, Black, White-Blue, White-Green, White-Orange, White-Brown |
| SPEC | 2×22AWG+2×24AWG | 2×22AWG+4×2×24AWG |
| Drain Conductor | Fine-stranded Tinned Copper Conductors 19*0.12 | Fine-stranded Tinned Copper Conductors 19*0.12 |
| Collective Shield | After overall cabling, wrapped around aluminum foil shield, with the conductive side kept in contact with the drain wire. | After overall cabling, wrapped around aluminum foil shield, with the conductive side kept in contact with the drain wire. |
| Tensile Strength Member | Kevlar | Kevlar |
| Separator | Ultra-thin Non-woven Fabric | Ultra-thin Non-woven Fabric |
| Jacket Material | Polyether PUR | Polyether PUR |
| Jacket Color | Purple | Green |
| Jacket Thickness | ≥1.35 | ≥1.0 |
| Long-term Allowable Working Temperature | -20∽80℃ | -20∽80℃ |
| Cable Tensile Strength | 100kg | 100kg |
| Conductor | 2×22AWG+2×24AWG | 2×22AWG+4×2×24AWG |
| Insulation Material | Teflon FEP | Teflon FEP |
| Insulation | 22AWG（1.3±0.1）；24AWG（1.05±0.05） | 22AWG（1.3±0.1）；24AWG（1.05±0.05） |
| Core Color | Red-Black (tightly twisted); White-Blue (tightly twisted) | Red, Black; White-Blue, White-Green, White-Orange, White-Brown (tightly twisted) |
| Shielding | Wrap Aluminum Foil Externally | Wrap Aluminum Foil Externally |
| Specifications of Applicable SUBLAB Gland Penetrator | 7.8 x 5.6 | 7.8 x 5.6 |
Usage Case:
Guides
FAQ
● How to waterproof the cable ends?
Waterproofing methods depend on specific requirements, considering factors such as whether it is detachable, waterproof depth, lifespan requirements, environmental conditions, connection methods (line-to-line, watertight enclosure outlet), etc.
Simple Waterproofing Treatment: Use Cable Penetrator, resin potting, etc.
Waterproofing Treatment within 1000 meters depth: Traditional encapsulation materials sealing, such as gel beads, gland heads used in pump cables, etc.
Deepwater Waterproofing Treatment: Sealing with vulcanized rubber, pressing waterproof connectors, fixed joints made of polyurethane, etc.
● What is the minimum order quantity?
The minimum order quantity is 1 meter.
● How to strip the cables?
Cable stripping can be done using diagonal pliers or a knife blade. Stripping tools or pneumatic/electric wire strippers are used for batch cutting. Kevlar inside may require separate cutting.
● What is the operating temperature range?
The long-term operating temperature is -20°C to 80°C, and the storage temperature is -20°C to 50°C.
● Can it be used if the cable jacket is damaged?
A damaged cable jacket may lead to short circuits or open circuits and can affect waterproofing.
● Does cable length affect signal transmission?
Yes. It should be selected after testing.
