Description

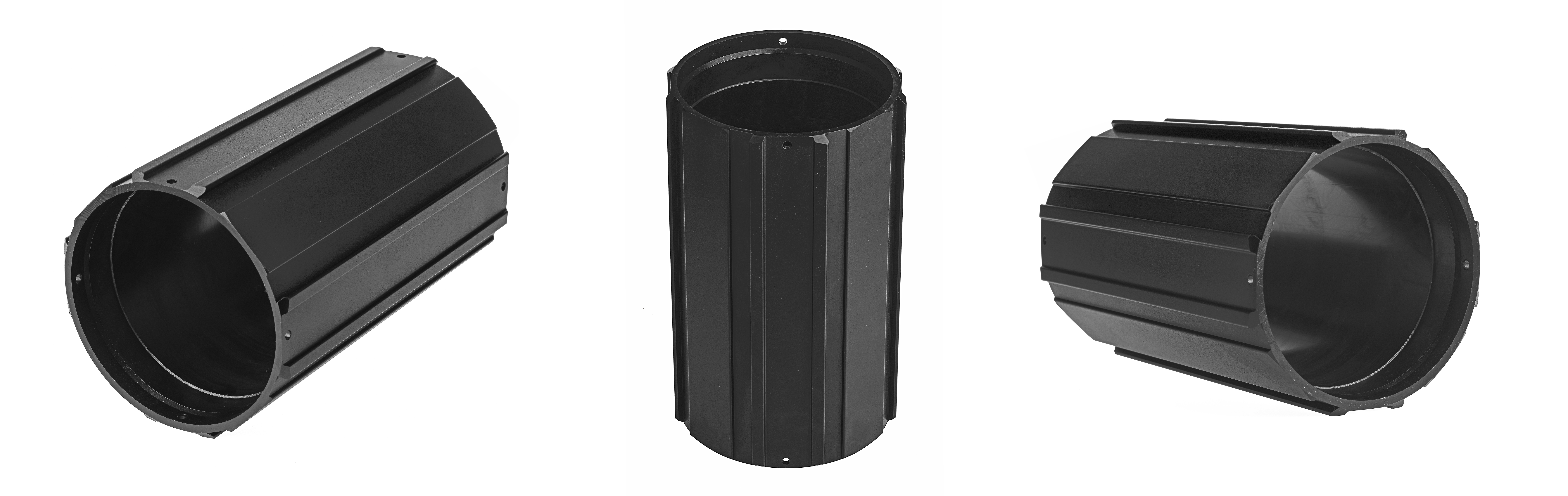

The tubes used for the SUBLAB Series watertight enclosure are made of aluminum material and are available in various lengths.
These aluminum tubes undergo precision machining and surface treatment to ensure accurate dimensions and a smooth surface for sealing. They grooves around the perimeter that conform to Arca-Swiss standards, allowing them to be mounted on photographic equipment tripods. Optional mounting bases are available for purchase.
* There will be some white exposure during the oxidation process at both ends, which does not affect the sealing effect.
Shipping List
- 1 x Enclosure Aluminum Tube
Specifications

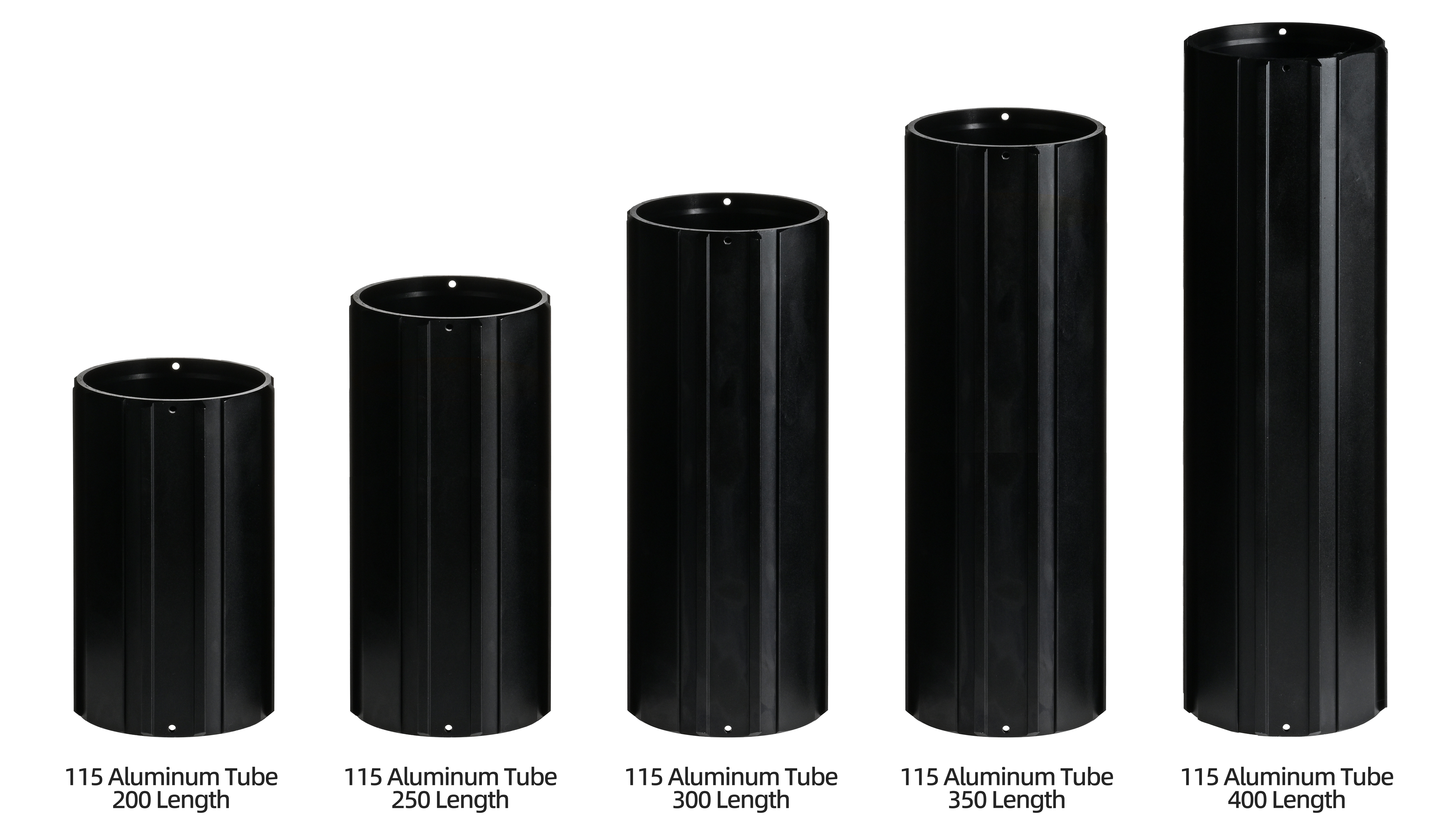

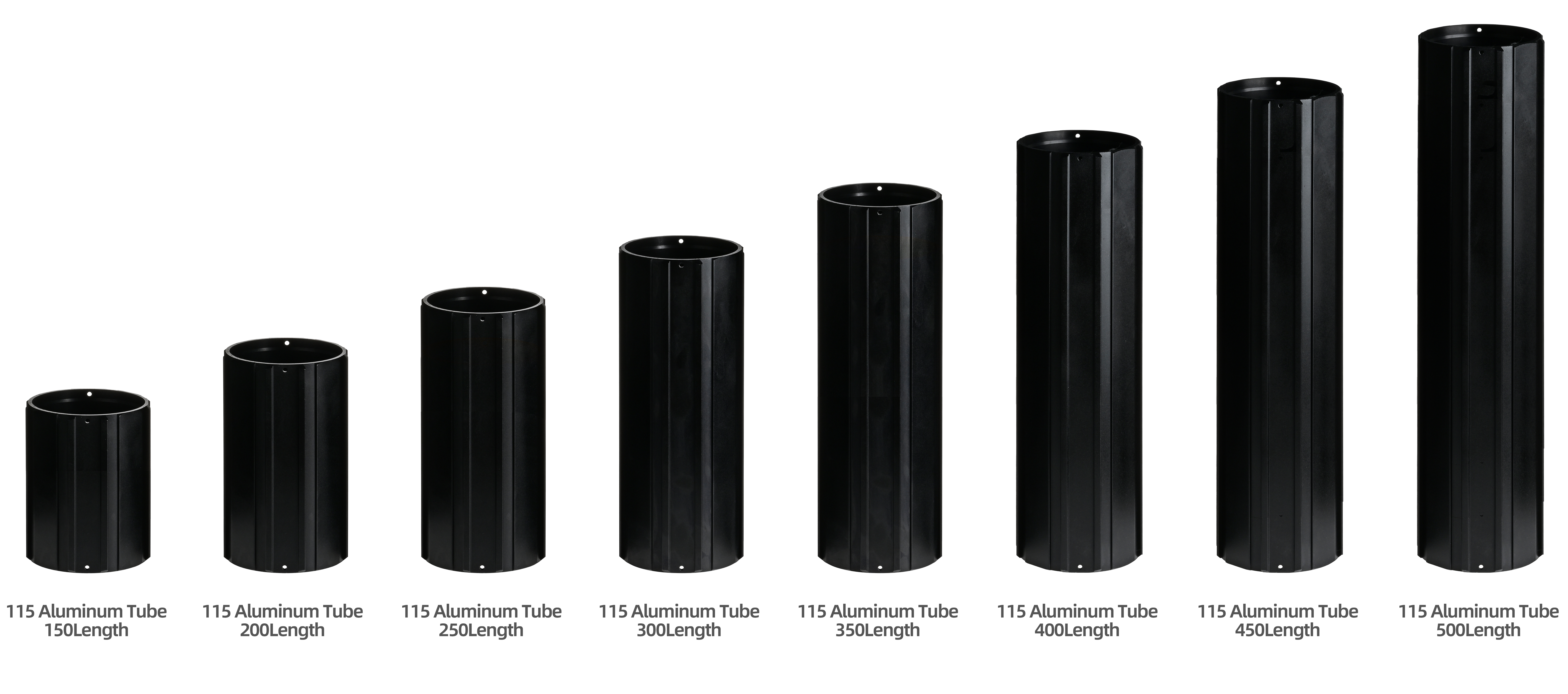

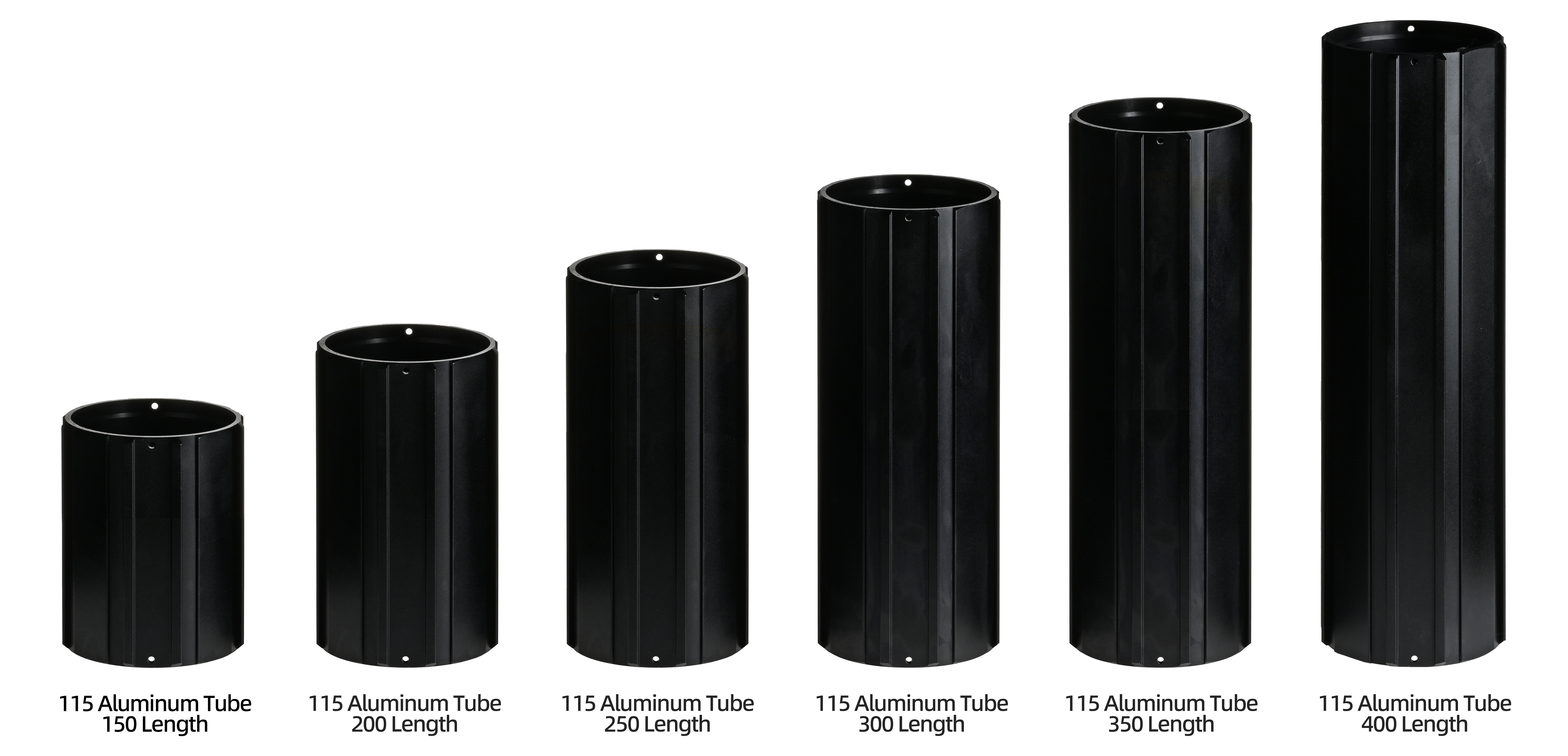

| Item | SKU | Material | Depth Rating* | Weight |
|---|---|---|---|---|
| 115 Aluminum Tube / 150 Length | 14010301-1150 | Black Anodized Aluminum | 1000 meters | 832g |
| 115 Aluminum Tube / 200 Length | 14010301-1151 | Black Anodized Aluminum | 1000 meters | 1116g |
| 115 Aluminum Tube / 250 Length | 14010301-1152 | Black Anodized Aluminum | 1000 meters | 1435g |
| 115 Aluminum Tube / 300 Length | 14010301-1153 | Black Anodized Aluminum | 1000 meters | 1715g |
| 115 Aluminum Tube / 350 Length | 14010301-1154 | Black Anodized Aluminum | 1000 meters | 2020g |
| 115 Aluminum Tube / 400 Length | 14010301-1155 | Black Anodized Aluminum | 1000 meters | 2307g |
| 115 Aluminum Tube / 450 Length | 14010301-1156 | Black Anodized Aluminum | 1000 meters* | 2670g |
| 115 Aluminum Tube / 500 Length | 14010301-1157 | Black Anodized Aluminum | 1000 meters* | 2965g |
*The rated pressure depth of the 115x450 & 115x500 specification is estimated. Due to the limited size of the pressure test equipment, this specification has not been tested.

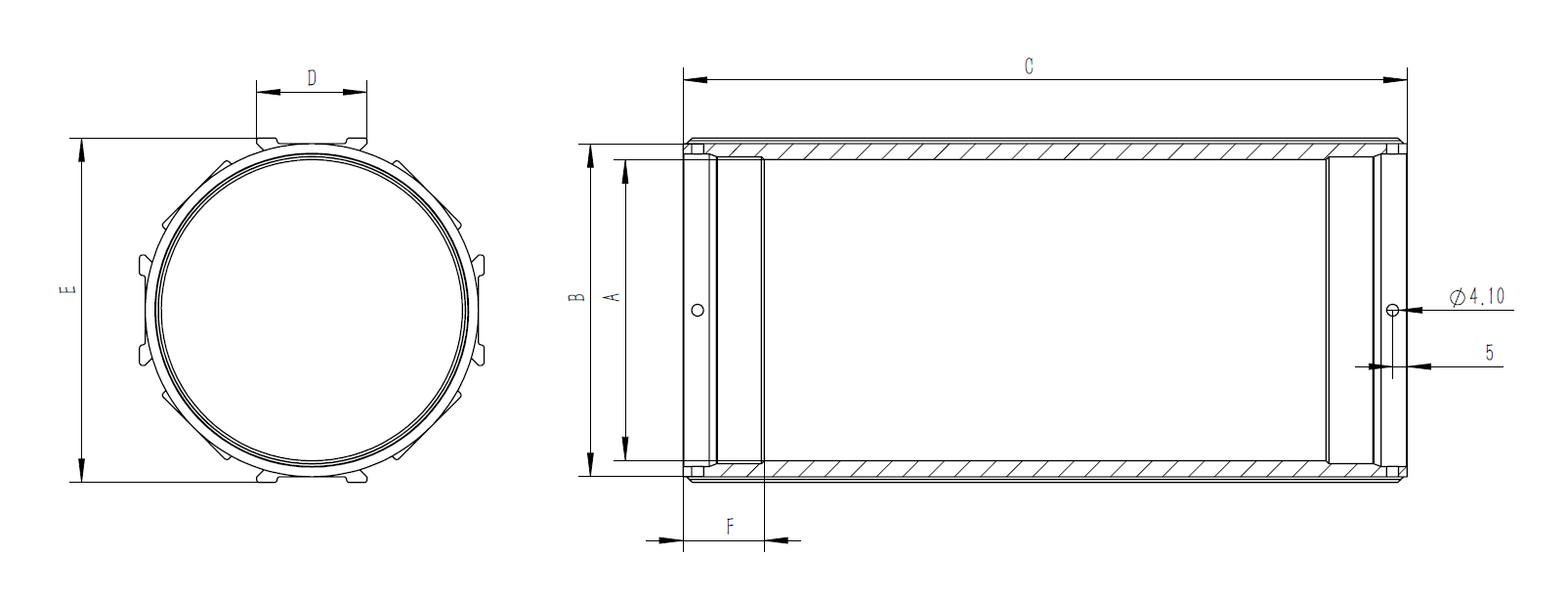

| Item | Inner Diameter A | Outer Diameter B | Length C | Arca-Swiss Interface Dimensions D | Arca-Swiss Interface Distance E | Piston Hole Depth F |
|---|---|---|---|---|---|---|
| 115 Aluminum Tube | 104 | 115 | Total Length±0.5 | 38.1 | 119 | 28 |
Guides
FAQ
● Can it still be used if the contact surface of O-ring is accidentally scratched?
No, it cannot be used, as there is a risk of leakage.
● Can custom lengths be requested?
Yes, custom lengths are available for an additional fee, and there may be a certain production time. Longer lengths may have a lower pressure resistance depth.
● Are there any other internal and external diameter sizes available?
Yes, various other sizes are currently in the design and production process.
● Are they compatible with SUBLAB acrylic tubes?
Yes, they are compatible and can be directly replaced. Please note that there might be a slight difference in the inner diameter.
● What are the four holes on the side for?
They correspond to threaded holes on the flange's side and are used for additional protection to prevent the flange from coming off. Acrylic tubes can use vacuum accessories to create a slight vacuum inside the watertight enclosure, which prevents the flange from coming off. Alternatively, you can tighten the end caps securely, as it is less likely to come off due to the presence of internal air. The side screws serve as additional protection.
