Description

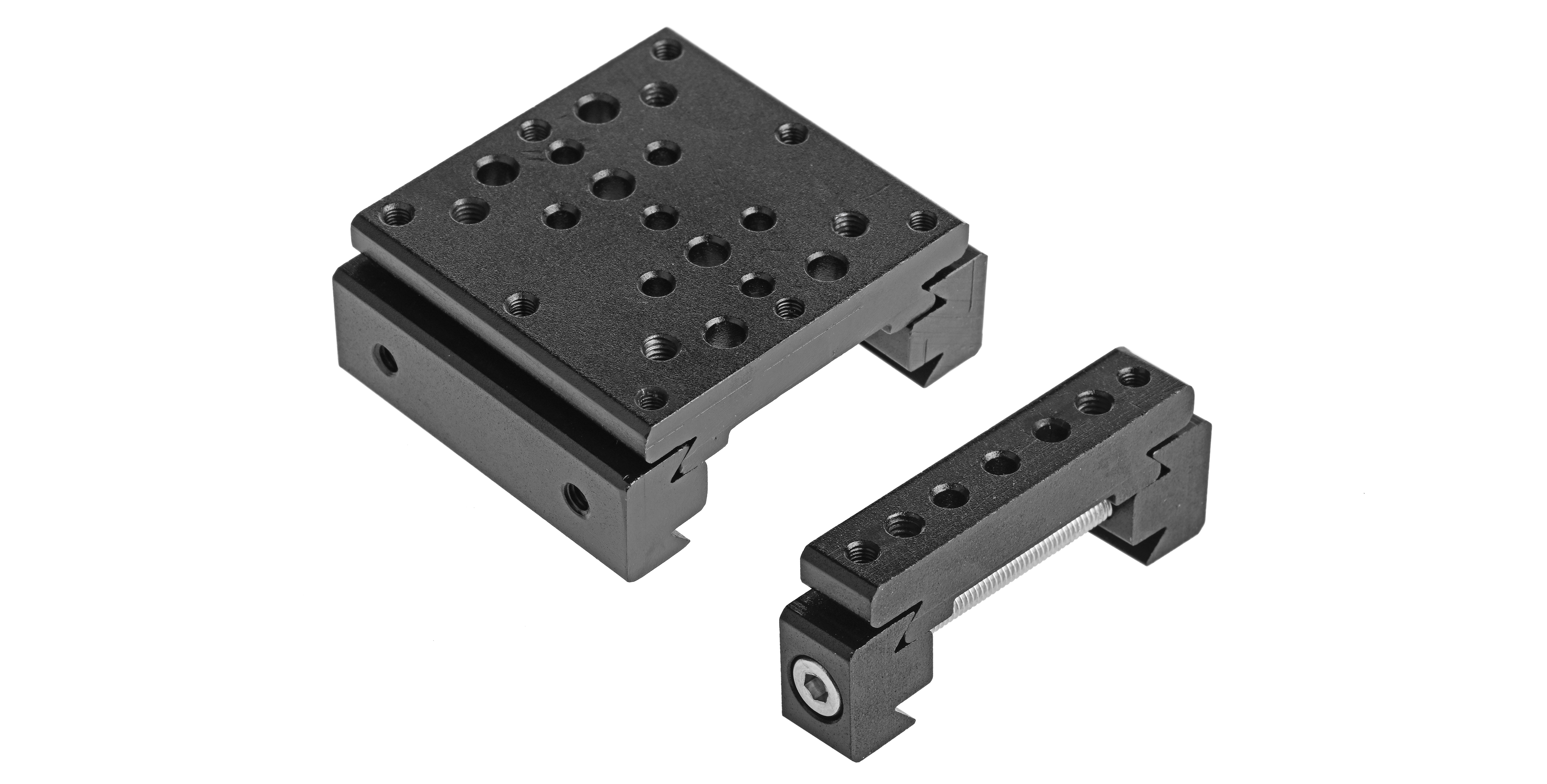

The enclosure plate for the installation and fixation of SUBLAB Series aluminum tubes is made of aluminum material. It is compatible with the Arca-Swiss interface of all specifications of SUBLAB aluminum tubes.

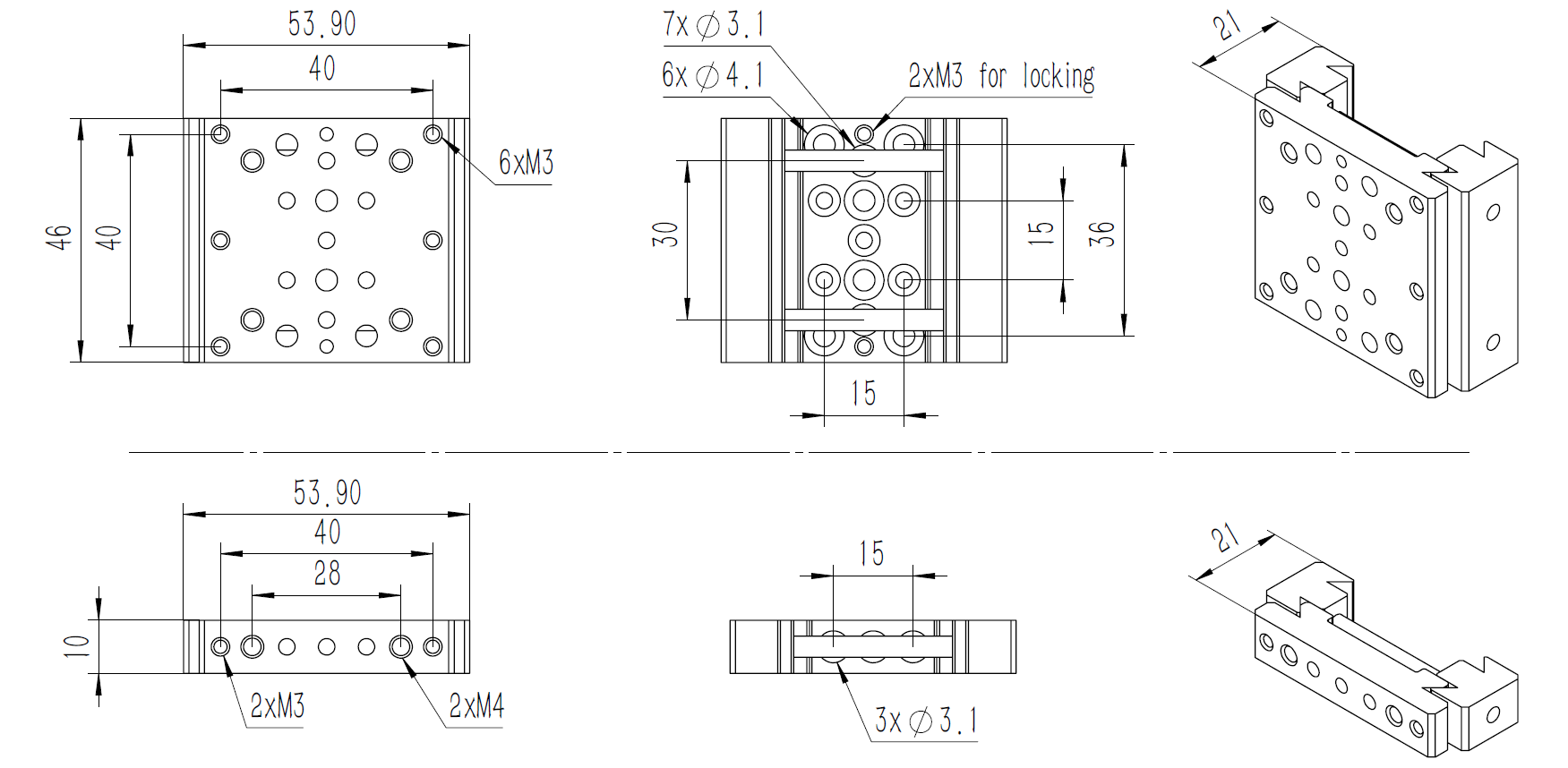

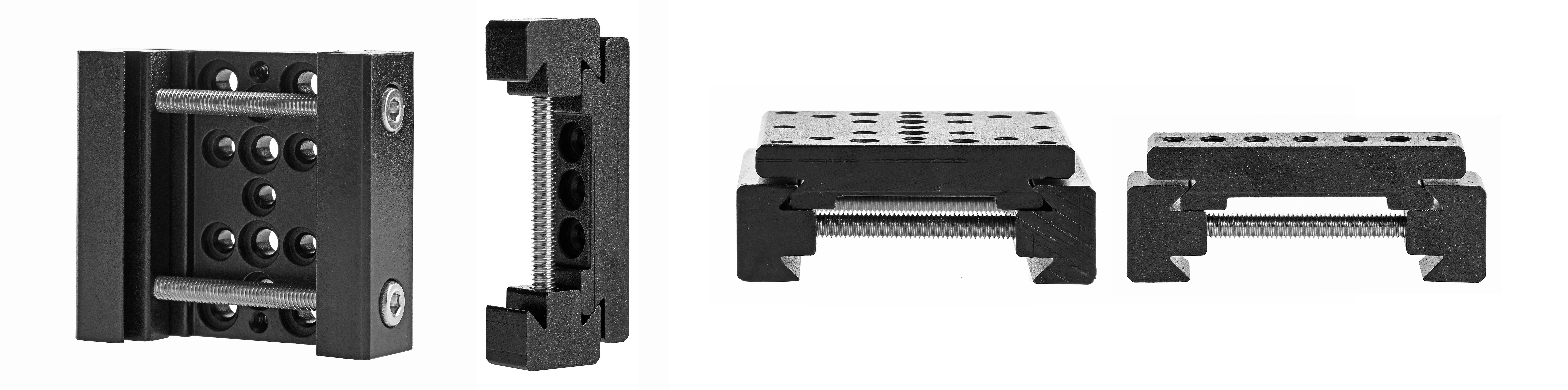

There are two versions available: wide and narrow. They are tightened laterally using M4 screws onto the Arca-Swiss interface. The mounting base is equipped with threads and countersunk through-holes for both forward and reverse installation.

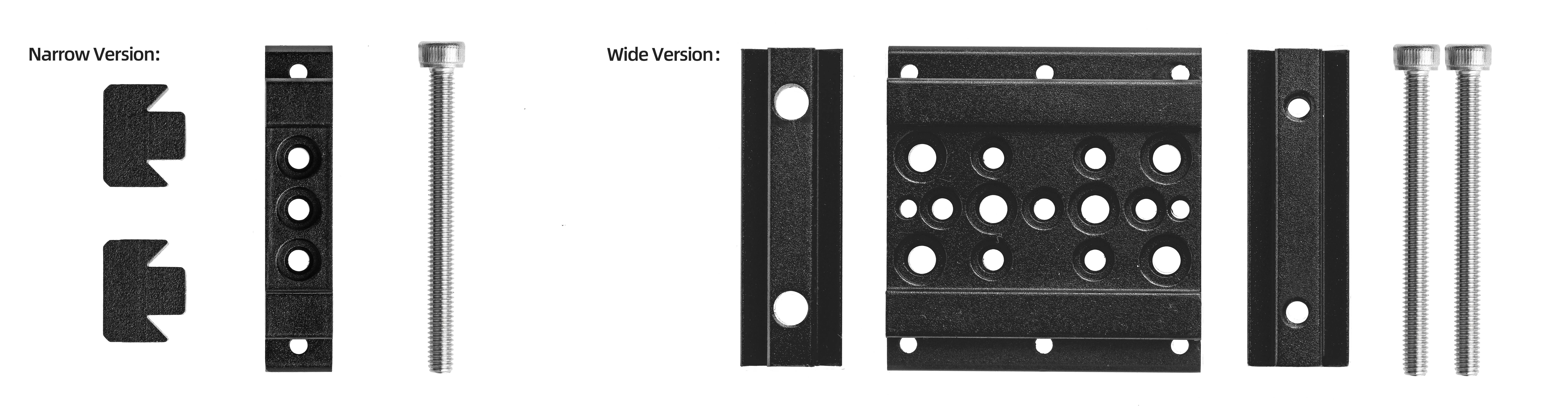

Shipping List
- 1 x Mounting Base
- 2 x Clamp Blocks
- 2 x Long Screw (1 x long screw for the narrow version)
Specifications
| Item | SKU | Material | Width | Weight | Unit Price(US$) |
|---|---|---|---|---|---|
| Wide Version | 14010601-0046 | Black Anodized Aluminum | 46 | 82g | 15 |
| Narrow Version | 14010601-0010 | Black Anodized Aluminum | 10 | 19g | 12 |
Guides
FAQ
● What is the difference between forward and reverse installation?
Forward installation refers to screws passing through the plate and fastening onto the mounting base, while reverse installation refers to screws passing through the mounting base and fastening onto the plate.
● 2xM3 for locking?
These two holes are for securing the quick-release plate of the Arca-Swiss interface and may not be necessary.
● Do all the mounting holes need to be fastened?
No, you can use as needed, for example, 4× M4 screws or 4× M3 screws, depending on your requirements.
● Is threadlocker needed?
It is needed in cases where disassembly is infrequent and there is a high level of vibration.
