Description
The clamps for the SUBLAB Series acrylic tubes is made of aluminum material and is divided into two parts that interlock to secure the clamps.
The bottom of the semi-circular clamps and its two sides have mounting holes for attaching it to acrylic tubes. There are soft anti-slip pads on the clamp, which can be cut and adhered by the user for added grip.

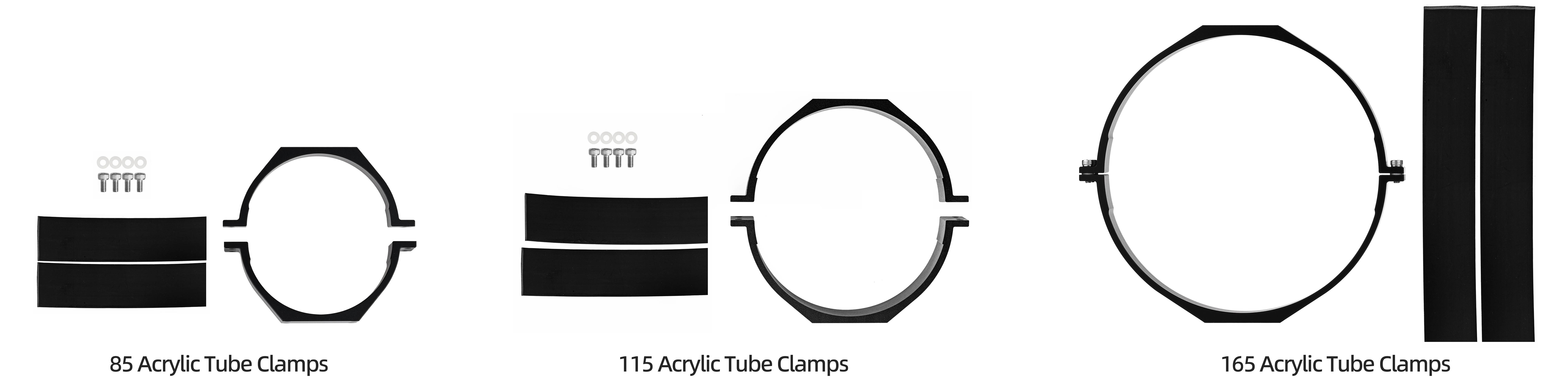

Shipping List
- 1 x Upper Portion of Semi-circular Clamp
- 1 x Lower Portion of Semi-circular Clamp
- 4 x Screw
- 1 x Anti-slip Adhesive Pad
Specifications
| Item | SKU | Material | Fitting Tube Outer Diameter | Weight | Unit Price(US$) |
|---|---|---|---|---|---|
| 85 Acrylic Tube Clamps | 14010501-0851 | Black Anodized Aluminum | 85 | 170g | 24 |
| 115 Acrylic Tube Clamps | 14010501-1151 | Black Anodized Aluminum | 115 | 198g | 28 |
| 165 Acrylic Tube Clamps | 14010501-1651 | Black Anodized Aluminum | 165 | 295g | 44 |

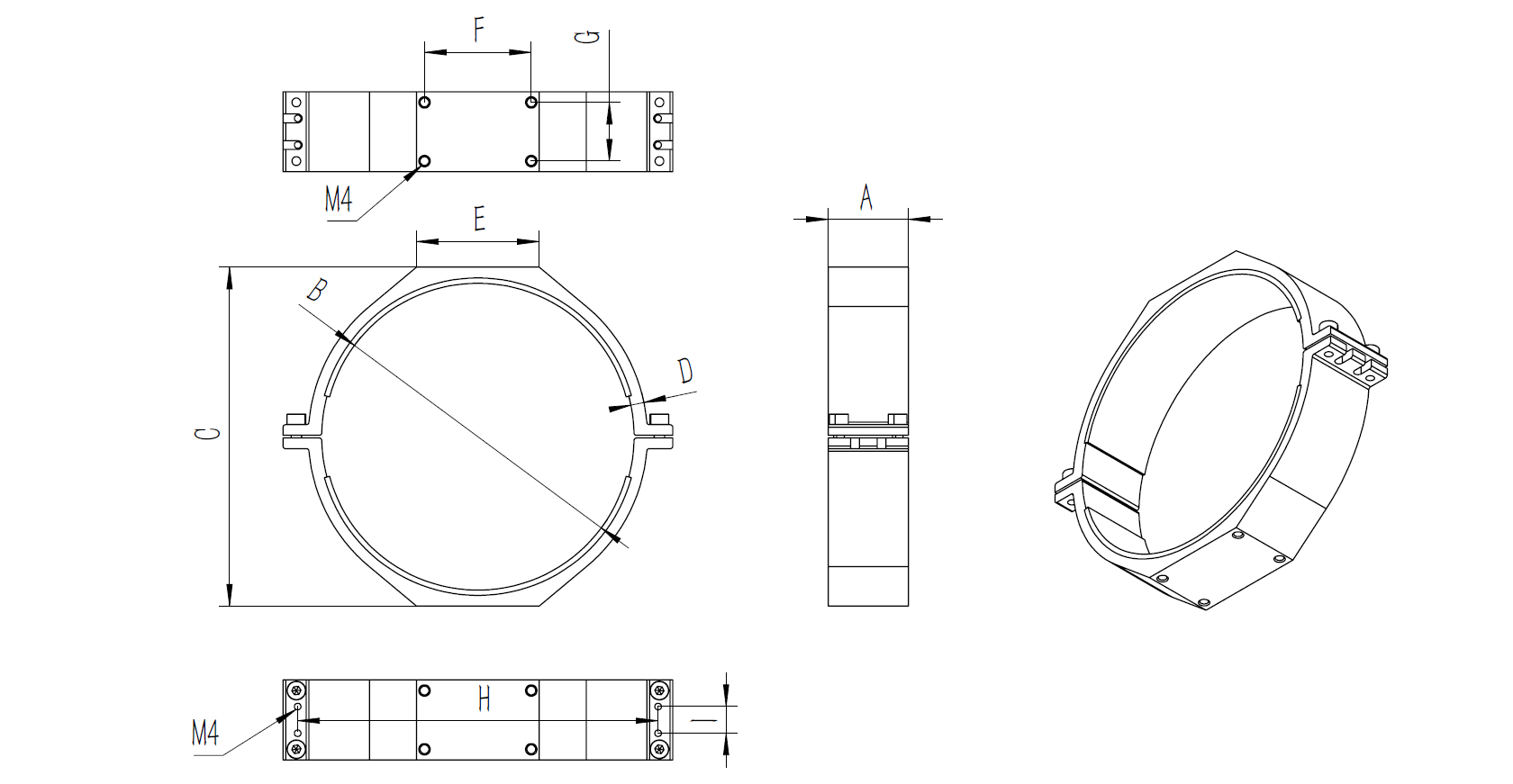

| Item | Width A | Inner Diameter B | Height C | Thickness D | Base Width E | Distance between Bottom Mounting Holes F | Distance between Bottom Mounting Holes G | Distance between Side-mounting holes H | Distance between Side-mounting holes I |
|---|---|---|---|---|---|---|---|---|---|
| 85 Clamps | 30 | 85 | 97 | 5 | 46 | 40 | 22 | 105 | 10 |
| 115 Clamps | 30 | 115 | 127 | 5 | 46 | 40 | 22 | 135 | 10 |
| 165 Clamps | 30 | 165 | 181 | 5 | 46 | 40 | 22 | 185 | 10 |
Guides
FAQ
● Which mounting holes are available for installation?
There are mounting holes on both the side and the top and bottom.
● Will the adhesive anti-slip pads come off?
Once clamped in place, they are not prone to coming off. However, if they come off after repeated disassembly and reassembly, it may be necessary to replace the anti-slip pads.
● Are there any precautions to be taken when adhering?
When adhering the anti-slip pads to the clamp, make sure to cut them to the appropriate length and clean the surface to which they will be adhered.
● Can it be used to secure aluminum tubes?
No, it is only suitable for cylindrical tubes. For securing aluminum tubes, please select the Arca-Swiss mounting base.
● Are there other sizes available?
Yes, they are currently in the design and production phase.
