Description

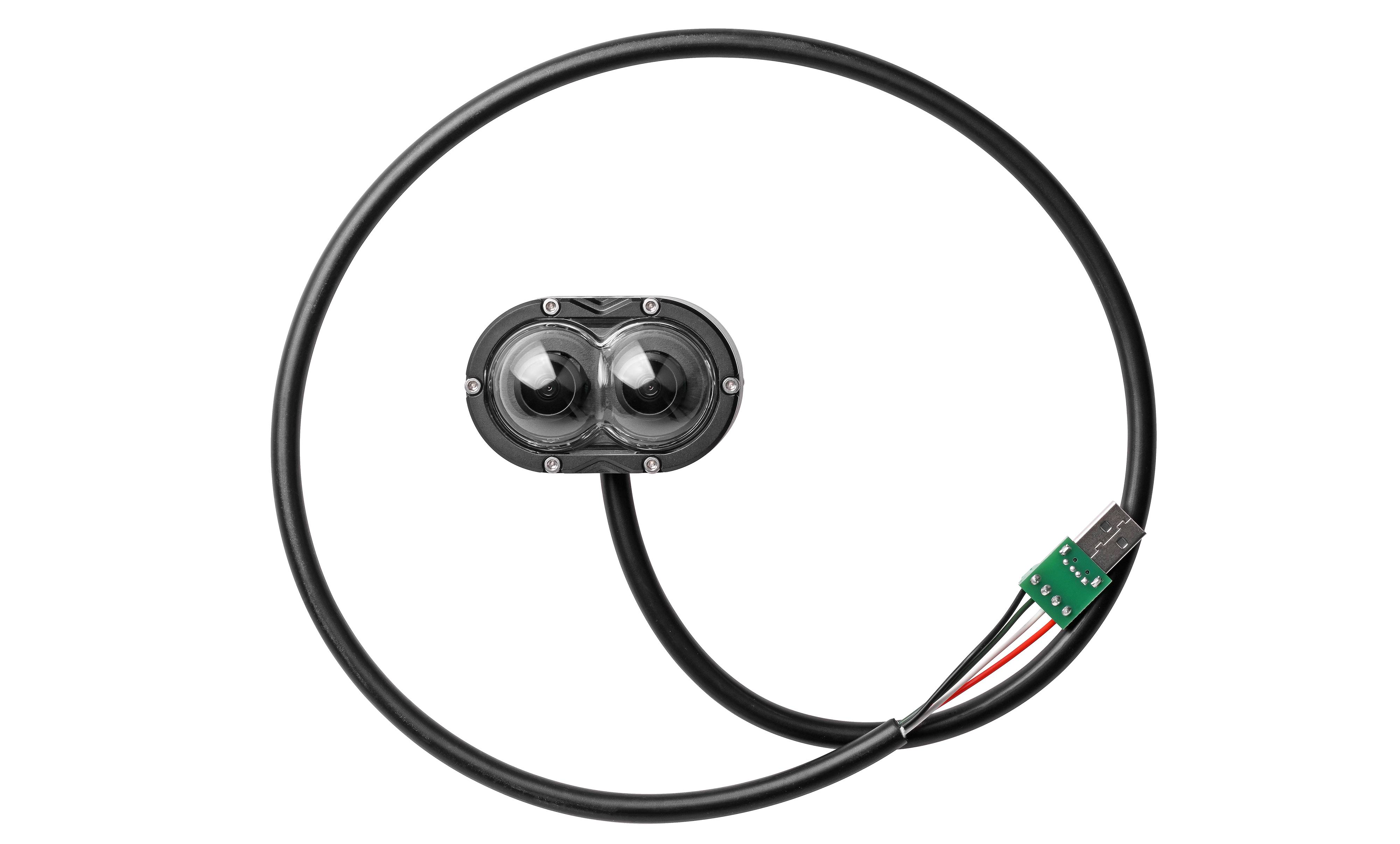

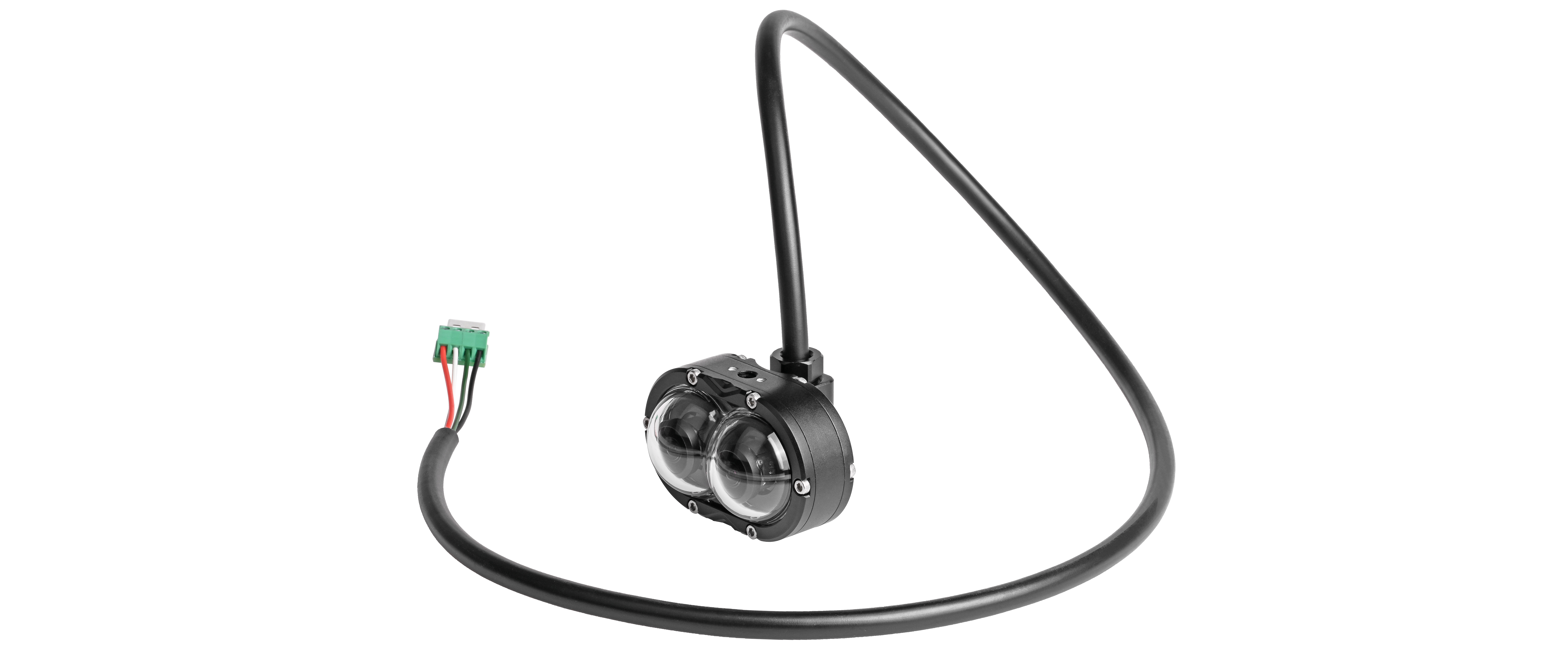

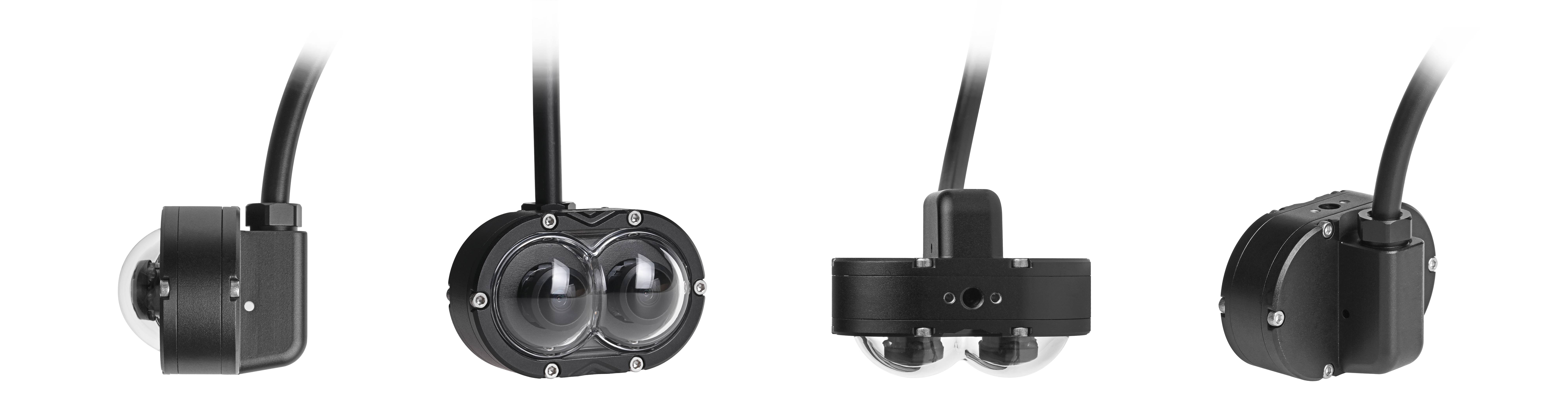

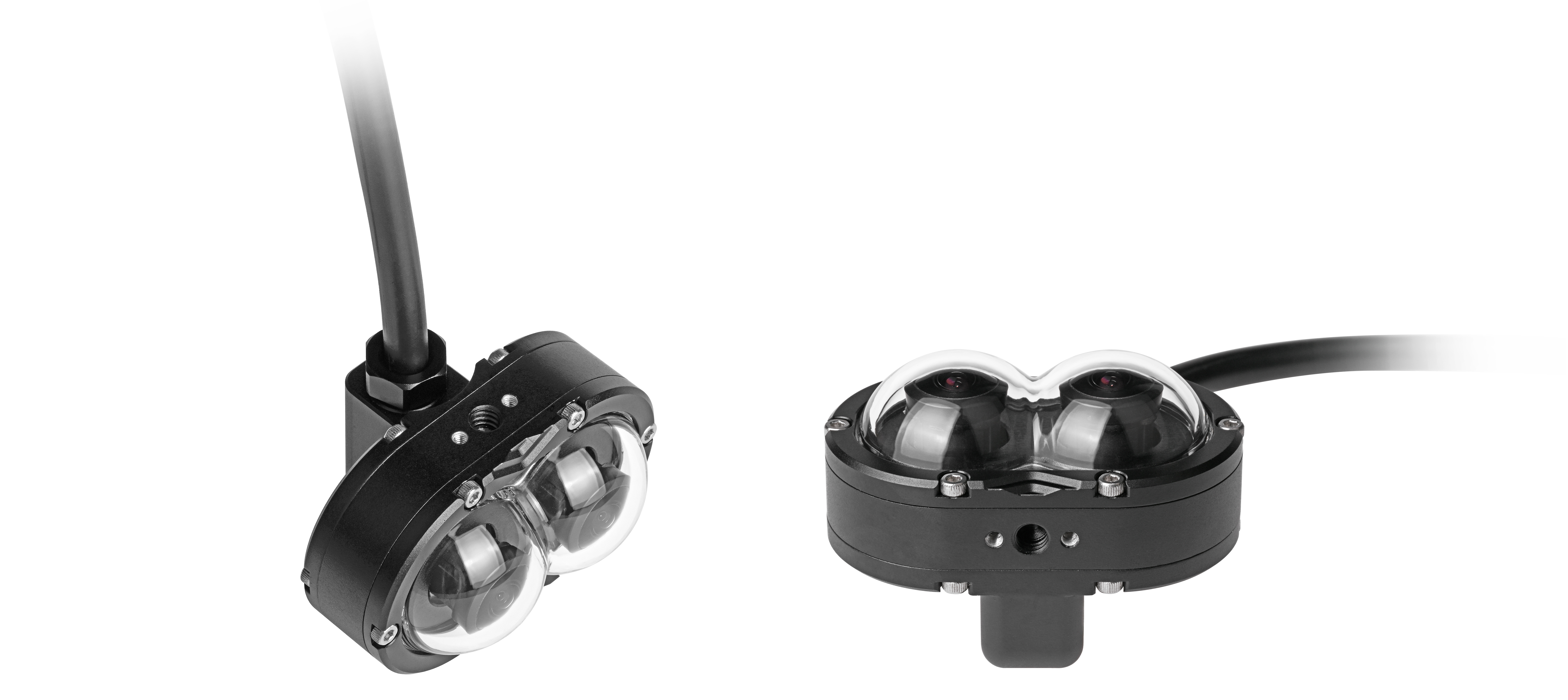

This wide-angle binocular camera internally features the "Unitree SV1-25 binocular camera module", paired with an aluminum housing and an acrylic dual-dome end cap cover. The fully enclosed shell provides excellent deep-water protection.
In air, it offers an ultra-wide 220° field of view, combined with a 1/4-inch high-quality sensor with a resolution of 1280×800 pixels, making it suitable for wide-field applications. Please note that the field of view differs between air and underwater environments, and calibration should be performed underwater.
This camera supports USB 2.0 connectivity and outputs in MJPEG/YUV2 formats, delivering high-definition video at 1856×800@30FPS. Alternatively, it can capture high-speed footage at 928×400 resolution and 60FPS.
Designed with low power consumption, it is ideal for underwater applications with compact spatial requirements, as well as for ground robots that demand high weather resistance.
Shipping List
- 1 x Fish-eye Binocular Camera
- 1 x USB Test Interface
Specifications
| Item | SKU | Material | Appearance | Weight | Unit Price(US$) |
|---|---|---|---|---|---|
| Fish-eye Binocular Camera | 11020701-0001 | Aluminum + Acrylic | Black Anodized | 192g | 875 |
| SPEC | Fish-eye Binocular Camera |
|---|---|
| Maximum Rated Depth | 300 meters |
| Screen Occlusion | The edges have slightly black edge shelter. |
| Distortion | There is distortion in the fisheye lens, and the dual dome end cap cover will also produce slight distortion. |
| Temperature Rating (water) | -4 ~ 40°C / 32 ~ 104°F |
| Mounting Interface | 2 × 1/4 ports and 4 × M3 threaded holes |
| Chip Parameter | 1280(H) x 800(V) = 1.0 Mp |
| Optical Parameter | 1/4-inch(4.5 mm) |
| Shutter Type | Color Global Shutter |
| Viewing Angle (air) | V = 220°(Y = 1.35mm) H = 220°(Y = 1.80mm) D = 220°(Y = 2.29mm) |
| Lens Type | Prime Focus |
| Base Line | 25mm (Distance from left lens center line to right lens center line) |
| Output | USB2.0 |
| Image Output Format | MJPEG/YUV2 |
| Supported Resolutions / Frame Rates | 1856x800@30FPS 928x400@30FPS /60FPS |
| Power Supply | 5V /200mA |
| Filter Cutoff Frequency | T = 50% at 650±10nm |
| Cable | 2x24AWG+2x26AWG Underwater Cable |
| Cable Length | Approx. 800mm |
| Wiring Definition | Red: +5VDC; Black: GND; White: DATA-; Green: DATA+ |
Dimension:
Guides
Testing Method: Please refer to the official documentation and SDK of the Unitree SV1-25 binocular camera module. SUBLAB does not provide technical support for post-purchase usage. Please ensure that you possess the necessary development capabilities before proceeding.
Files in the Download are publicly available documents from Unitree. For the latest documentation and resources, please visit the Unitree official website( Link: www.unitree.com). Please note that while this camera includes Unitree components, Unitree may not provide direct technical support to non-direct customers. **SUBLAB does not offer coordination or technical support in this regard.**
FAQ
● Can I directly view the video feed when connected to a computer?
No, you need to use the SDK for development to access the video feed.
● Can the SDK be used directly?
Viewing video feed can be developed directly by using the SDK, but the later algorithms need to be recalibrated underwater, because the camera's field of view changes due to water refraction when placed underwater.
● Can the tail gland penetrator be screwed off?
No, it requires special tools. Loosening or tightening it may affect the sealing performance.
● How to understand the 220° field of view?
In air, the field of view exceeds 180°, allowing the camera to capture parts of the scene behind its vertex.
