Description

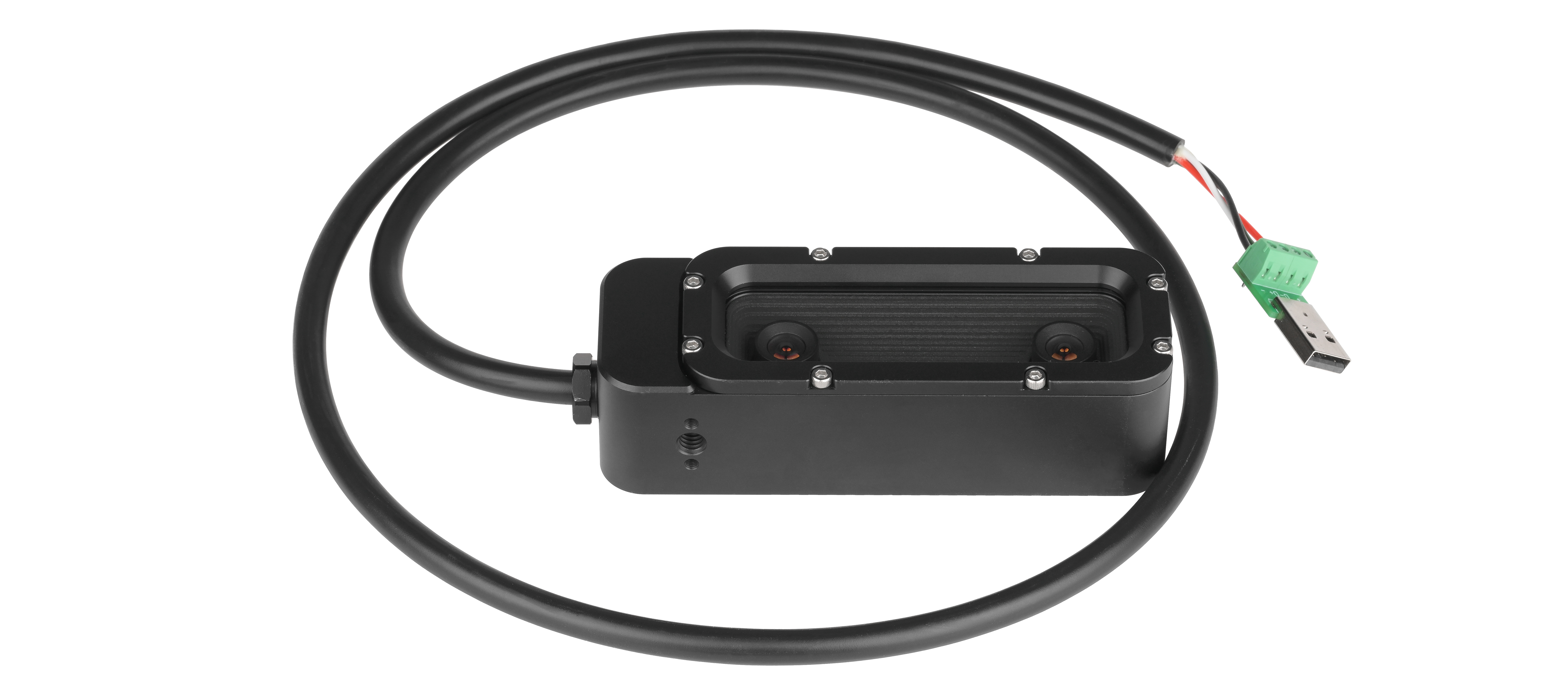

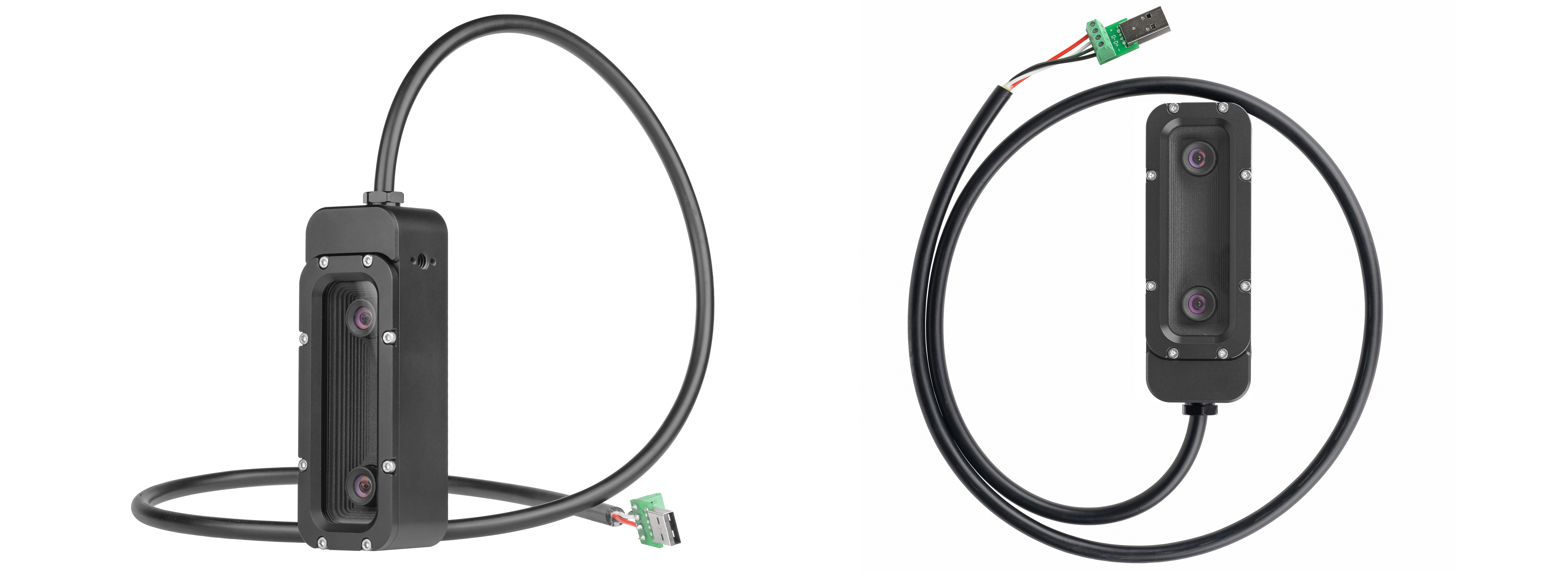

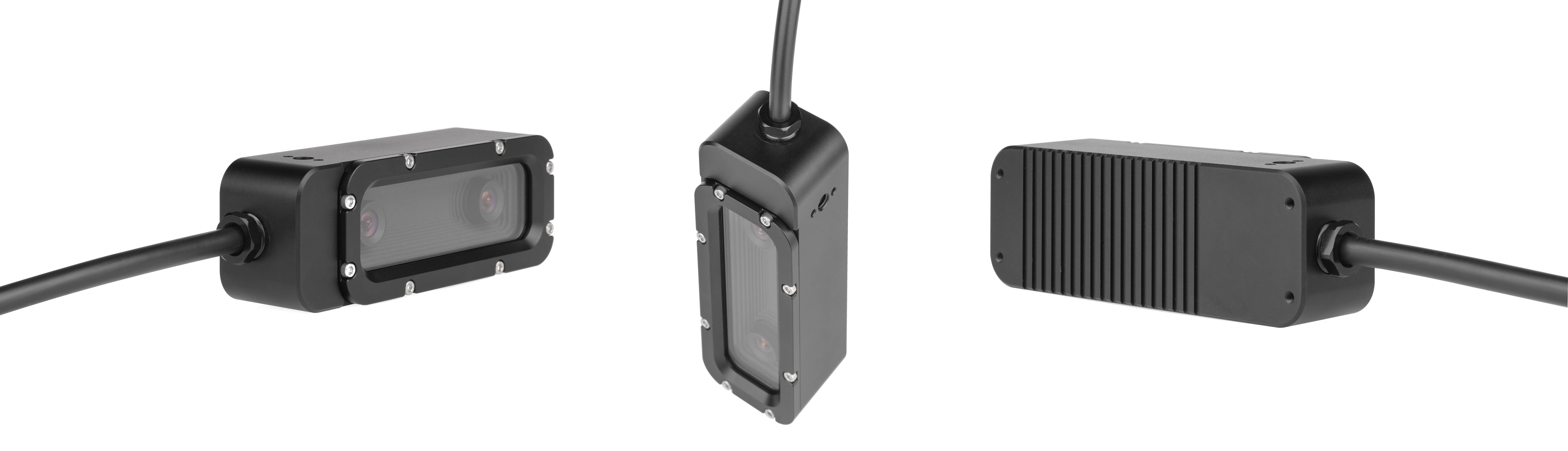

The output of this underwater binocular camera is synchronous splicing screen, the interface is USB, multi-system compatible, UVC drive-free, tempered glass and aluminum housing can be disassembled for focus adjustment. Suitable for underwater ranging, visual obstacle avoidance, 3D reconstruction, depth vision and other scenes.
Shipping List
- 1 × Binocular Camera
- 1 × USB Test Interface
Specifications
| Item | SKU | Material | Appearance | Weight | Unit Price(US$) |
|---|---|---|---|---|---|
| Binocular Camera | 11020201-0001 | Aluminum + Tempered Glass | Black Anodized | 395g | 359 |
| SPEC | Binocular Camera |
|---|---|
| Maximum Rated Depth | 300 meters |
| Temperature Rating (water) | -4 ~ 40°C / 32 ~ 104°F |

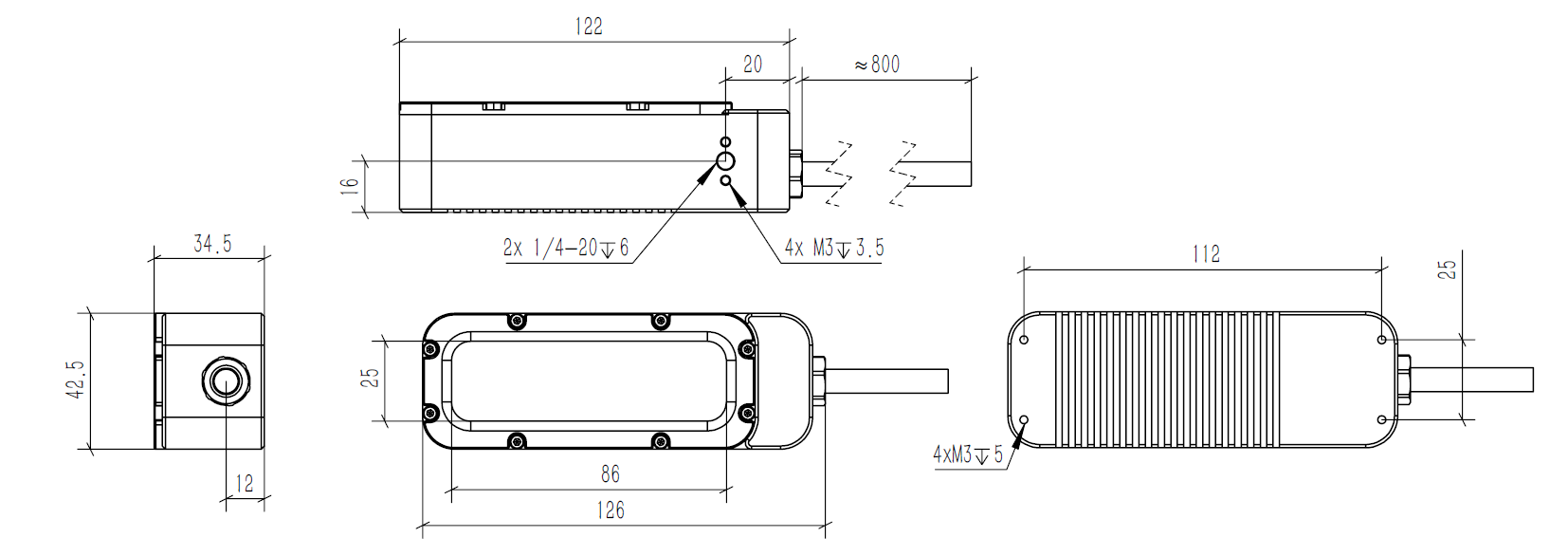

| Mounting Interface | 2 × 1/4 ports and 8 × M3 threaded holes |
| Sensor Model | OV9750 1/3INCH |
| Pixel Size | 3.75μm X 3.75μm |
| Pixel | 2560 x 960 |
| Image Region | 4860μm x 3660μm |
| Image Output Format | MJPEG |
| Supported Resolutions / Frame Rates | 640x240@60fps；1280x480@60fps；2560x720@60fps；2560x960@60fps |
| Minimum Illumination | 0.1LUX |
| Output | USB2.0 |
| Drive-free Protocol | UVC |
| Lens | 70° with no distortion |
| Working Voltage | 5V |
| Cable | 2x24AWG+2x26AWG Underwater Cable |
| Cable Length | Approx. 800mm |
| Wiring Definition | Red: +5VDC; Black: GND; White: DATA-; Green: DATA+ |
Guides
Quick test method: Connect the camera out cable to the temporary USB test port, connect the test port to your computer's USB port, and open the camera app to automatically recognize the display camera screen.
FAQ
● How to understand the synchronous stitching screen?
The video pictures of the two cameras are spliced by the on-board chip and output from USB. In the camera application display of the computer, the left and right spliced pictures are synchronized with the same frame.
● How to adjust the focus distance?
In order to manually focus, you need to remove the glass and adjust the lens by twisting the lens left and right. Note that the focusing adjustment range of the lens is not large, and the lens can not protrude and touch the glass and be crushed.
● Can the tail gran head be screwed off?
No, you need special tools. Loosening and tightening will affect the tightness.
● How is the end of the cable waterproof?
You can use cable penetrators, watertight connectors, vulcanized cable wiring and other methods.
