Description

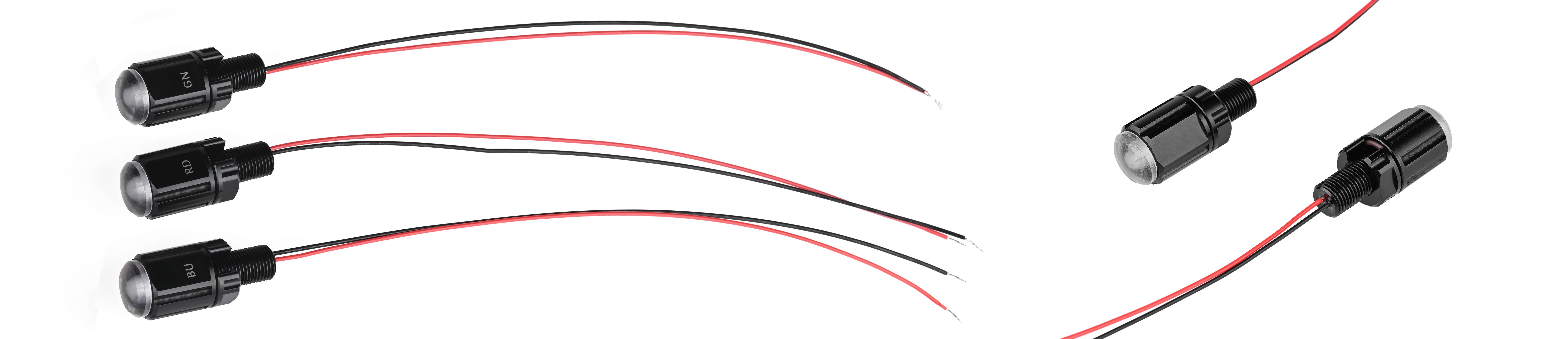

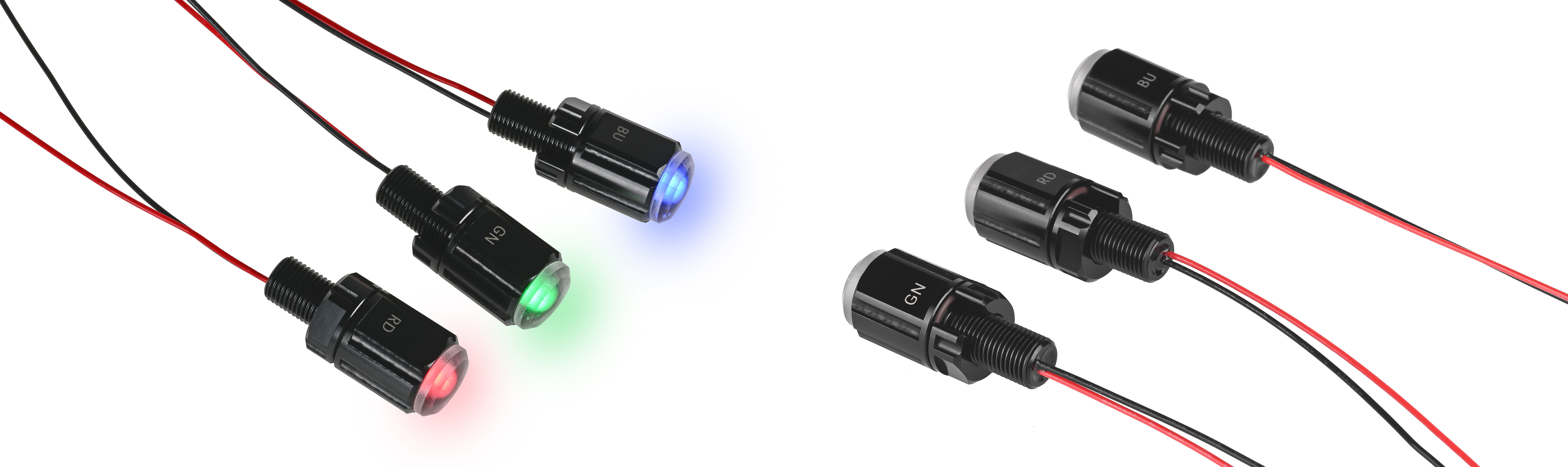

This signal indicator is built-in 5mm round LED, used for underwater equipment signal indication, there are three colors to choose from, the head is a large viewing angle of the round diffuser.
* From the light-emitting surface, you can see that there are a few air bubbles, which is a normal phenomenon that does not affect the watertightness and use of the product.

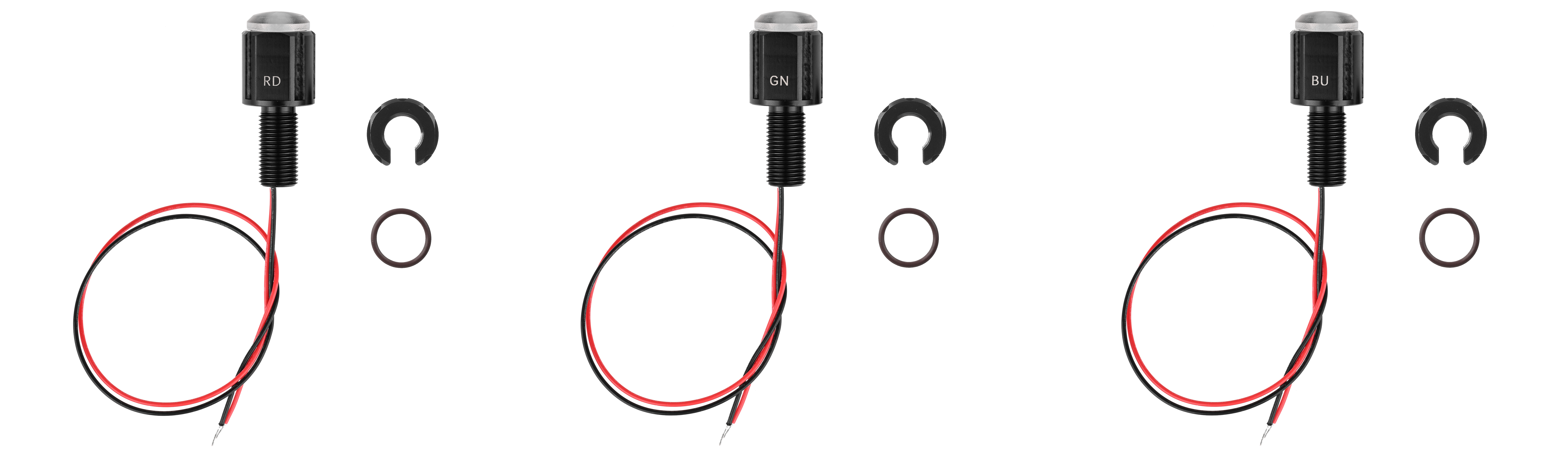

Shipping List
- 1 × Signal Indicator
Specifications
| Item | SKU | Material | Light Color | Weight | Unit Price(US$) |
|---|---|---|---|---|---|
| Red Signal Indicator | 10030105-0001 | PC+Aluminum | Red | 16.5g | 15 |
| Green Signal Indicator | 10030105-0002 | PC+Aluminum | Green | 16.5g | 15 |
| Blue Signal Indicator | 10030105-0003 | PC+Aluminum | Blue | 16.5g | 15 |

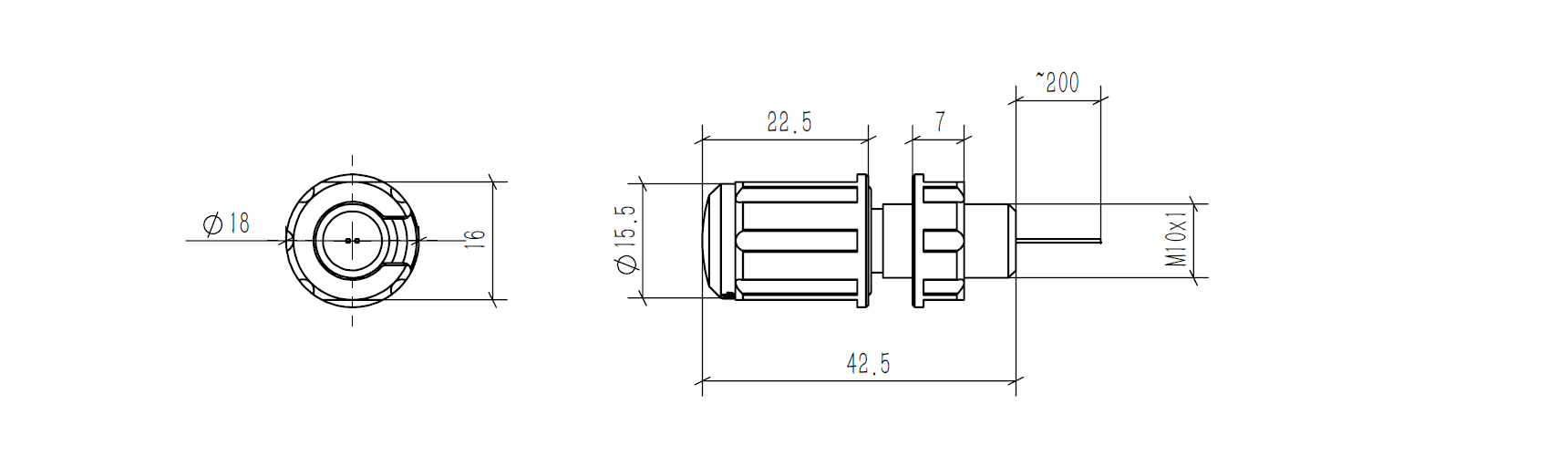

Dimension:
| Spec | Signal Indicator |
| Thread Size | M10×1 |
| Material | PC+Aluminum |
| Voltage Range | 4-28VDC |
| Wiring Definition | Red: Power+； Black: Power- |
| Wire Length | 200mm |
| Power (output) | 0.5W(MAX) |
| Current | 0.02A(MAX) |
| Pressure-resistant Depth | 1000 meters |
| Luminous Intensity (average) | Red: 400mcd; Green: 1500mcd; Blue: 300mcd |
Recommended Size:
| Recommended Size | Signal Indicator |
|---|---|
| Recommended Bulkhead Through Hole Size (A) | Ø10.1±0.1 / Threaded |
| Hatch Cover Thickness (B) | 13 |
| Surface Range (C) | 20 |
Guides
FAQ
● Is there an internal driver, and does it light up when connected directly to the positive and negative?
The internal driver is integrated, and it lights up when it is connected to positive or negative.
● Is the brightness the same across the voltage range?
The brightness is the same within the voltage range.
● What will happen if I exceed or fall below the rated voltage?
If the rated voltage is exceeded, the indicator will be damaged, and if the voltage is too low, the brightness will be reduced.
● Can I use the transparent cover of the head if it is cracked by impact?
No, you should stop using it immediately, as it will leak and be damaged.
● Can I use it as a power indicator? How do I connect the power display?
The power display requires signal control and cannot directly display the power level, but it can be switched to show the power on status.
