Description
This cable penetrator blank is provided with no hole. It can be used to seal an extra hole on a watertight enclosure or replace the holes of the existing cable penetrator.
The wrench socket of the bulkhead does not extend to the bottom. The retained circular step serves to protect the hatch cover, averting potential scratches during wrenching procedures. In cases where closely positioned bulkheads limit available workspace, tools like snap ring pliers can be utilized to rotate the semi-circular groove on the head, negating the need for specialized tools. It's advised to include washers or anti-slip pads between the nut and the bulkhead to secure fastening and deter loosening. Avoid applying any friction-reducing sliding pads, like gaskets, to the nut. Loctite thread locker is recommended for application to the nut and bulkhead to prevent loosening. Be cautious not to let the thread glue come into contact with the gasket or its contact surface.

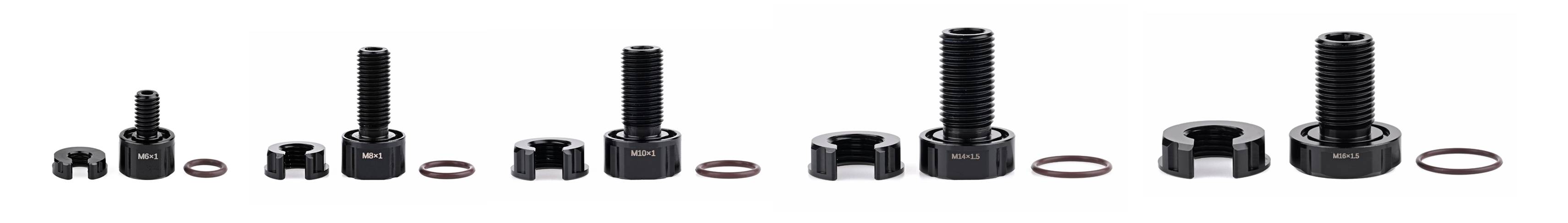

Shipping List
For each unit, the following items are included for the selected size.
- 1 x Blank Bulkhead
- 1 x O-ring
- 1 x Nut
Specifications

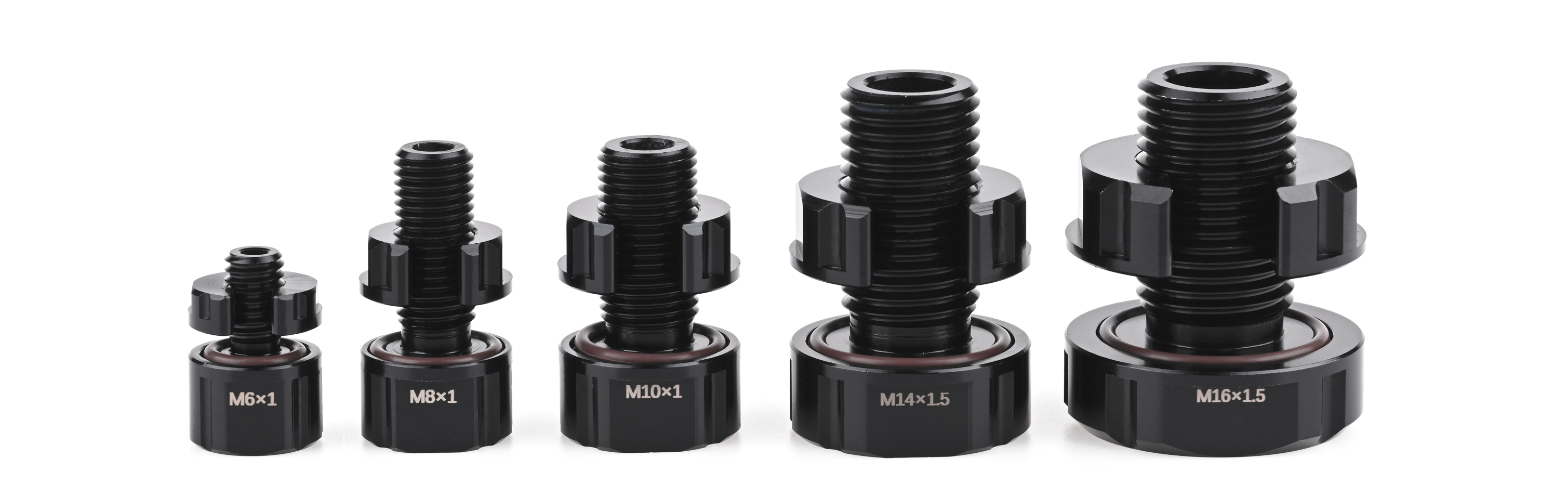

| Bulkhead Size | SKU | Material | Appearance | O-ring Size | O-ring Material | Unit Price(US$) |
|---|---|---|---|---|---|---|
| M6x1 Cable Penetrator Blank | 13020201-0006 | 6061 Aluminum | Black Anodized | Ø7 x 1.5 | FKM75 Brown Fluorine Rubber | 7 |
| M8x1 Cable Penetrator Blank | 13020201-0008 | 6061 Aluminum | Black Anodized | Ø10 x 1.5 | FKM75 Brown Fluorine Rubber | 5.5 |
| M10x1 Cable Penetrator Blank | 13020201-0010 | 6061 Aluminum | Black Anodized | Ø12 x 1.5 | FKM75 Brown Fluorine Rubber | 6 |
| M14x1.5 Cable Penetrator Blank | 13020201-0014 | 6061 Aluminum | Black Anodized | Ø17 x 1.5 | FKM75 Brown Fluorine Rubber | 7.5 |
| M16x1.5 Cable Penetrator Blank | 13020201-0016 | 6061 Aluminum | Black Anodized | Ø20 x 1.5 | FKM75 Brown Fluorine Rubber | 8 |
| Performance Characteristics | Cable Penetrator Blank |
|---|---|
| Maximum Rated Depth | Related to actual sealing and scenario / Sample testing up to 1000 meters |
| Design Lifetime | Related to actual sealing and scenario / Sample testing up to 3 years or 300 cycles |
| Temperature Rating (air) | Related to actual sealing and scenario / Samples testing from -25 to 60°C |
| Temperature Rating (water) | Related to actual sealing and scenario / Samples testing from -4 to 40°C |

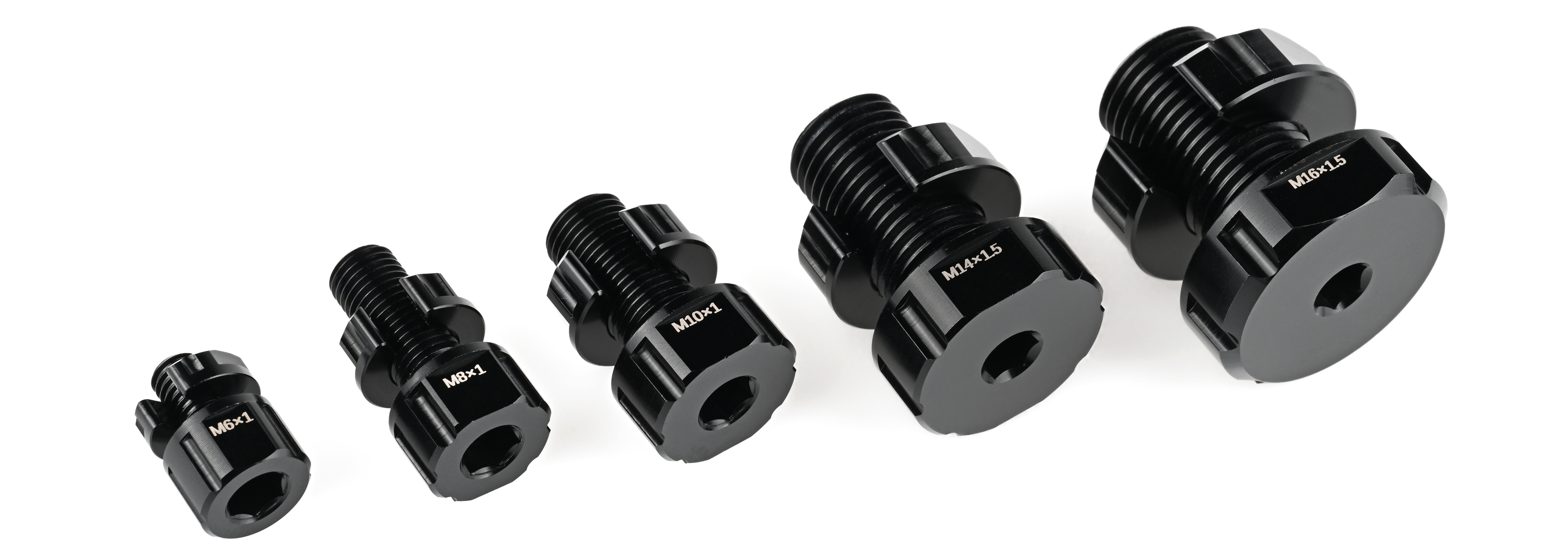

*Attention: The hex socket at the top can only be intended for quickly tightening or loosening, not suitable for applying high torque. An appropriate wrench should be used to finally tighten the opposite sides of the bulkhead in order to achieve the appropriate installation torque.
| Bulkhead Size | M6x1 | M8x1 | M10x1 | M14x1.5 | M16x1.5 |
|---|---|---|---|---|---|
| Seal Sizes (A) | 2.5 | 4 | 5 | 8.5 | 10 |
| Bulkhead Thread (B) | M6x1 | M8x1 | M10x1 | M14x1.5 | M16x1.5 |
| Bulkhead Thread Length (C) | 10 | 20 | 20 | 26 | 26 |
| Assembled Height from Endcap (D) | 9 | 9 | 9 | 9 | 9 |
| Overall Outer Diameter (E) | 13 | 15 | 18 | 24 | 30 |
| Width between Opposite Sides of Hex Socket (F) | 6 | 6 | 6 | 6 | 6 |
| Nut Height (G) | 4 | 6 | 7 | 8 | 9 |
| Nut Slot Width (H) | 3.5 | 4.5 | 6 | 9 | 10 |
| Width between Opposite Sides of Wrench Groove (I) | 12 | 13 | 16 | 22 | 27 |
| Recommended Size | M6x1 | M8x1 | M10x1 | M14x1.5 | M16x1.5 |
|---|---|---|---|---|---|
| Recommended Bulkhead Through Hole Size (A) | Ø6.1±0.1 / Threaded | Ø8.1±0.1 / Threaded | Ø10.1±0.1 / Threaded | Ø14.1±0.1 / Threaded | Ø16.1±0.1 / Threaded |
| Hatch Cover Thickness (B) | 6 | 14 | 13 | 18 | 17 |
| Surface Range (C) | 15 | 17 | 20 | 26 | 32 |
