Description

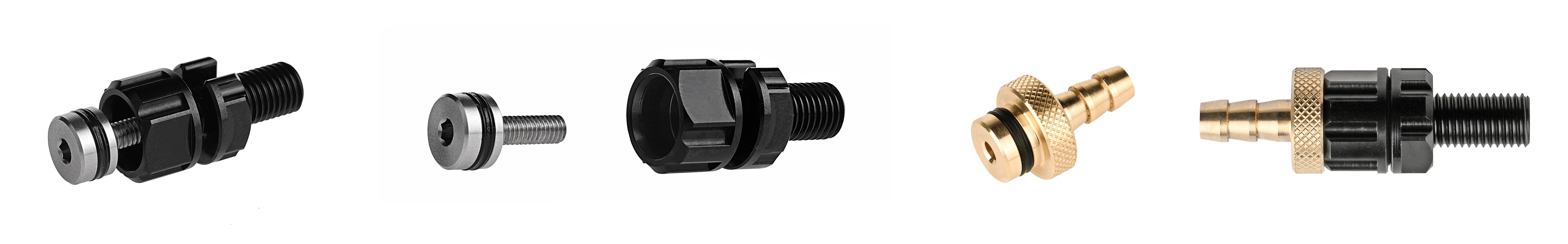

The enclosure vent is used to establish air communication between the inside and outside of a watertight enclosure. In instances where a watertight enclosure requires vacuuming to achieve negative pressure or when the difference in internal and external air pressure makes it difficult to remove flanges after watertight enclosure closure, the pre-installed enclosure vent serves its purpose. By removing the plug of the enclosure vent, internal and external air can communicate, facilitating the removal of flanges. The enclosure vent's plug is designed with an internal hexagon for easy disassembly, and once screwed on, it can withstand water pressure of up to 1000 meters. Additionally, there is a stainless steel mesh inside to prevent fine impurities from entering.
The wrench socket of the bulkhead does not extend to the bottom. The retained circular step serves to protect the hatch cover, averting potential scratches during wrenching procedures.

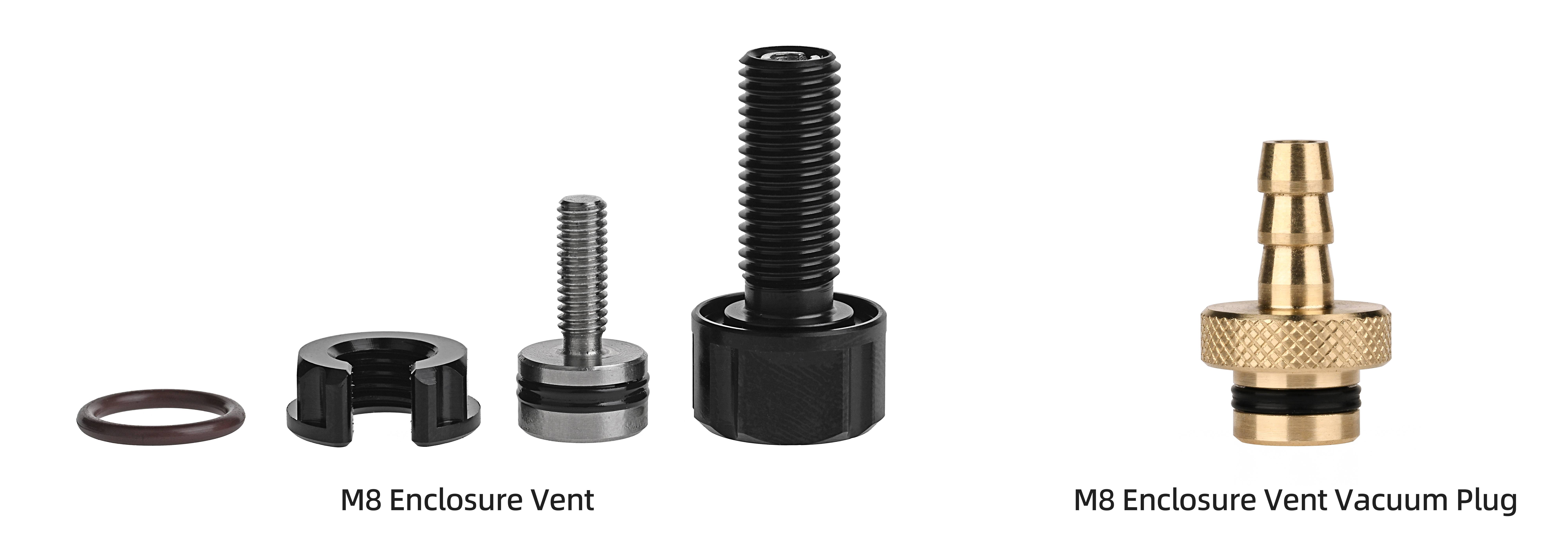

Shipping List
For each unit, the following items are included for the selected size.
- 1 x Enclosure Vent
- 1 x O-ring
- 1 x Nut
- 1 x Vent Plug
- 1 x M8 Enclosure Vent Vacuum Plug (Required Separately)
Specifications
| Item | SKU | Material | Appearance | O-ring Size | O-ring Material | Unit Price(US$) |
|---|---|---|---|---|---|---|
| M8 Enclosure Vent | 14010103-0008 | Aluminum + Stainless Steel | Stainless Steel Natural Color Plug, Black Bulkhead | Ø10 x 1.5 | FKM75 Brown Fluorine Rubber | 12 |
| M8 Enclosure Vent Vacuum Plug | 14010103-0018 | Copper | Copper-natural Color | - | - | 7.5 |
| Performance Characteristics | M8 Enclosure Vent |
|---|---|
| Maximum Rated Depth | 1000 meters / 3280 ft |
| Design Lifetime | 3 years or 500 cycles |
| Temperature Rating (air) | -25 ~ 60°C / -13 ~ 140°F |
| Temperature Rating (water) | -4 ~ 40°C / 32 ~ 104°F |
| Plug Hex Size | 3mm hex wrench |
| Plug Material | Stainless steel |
| Bulkhead Material | Aluminum |
| Bulkhead Thread | M8x1 |
| Filter Size | 60 mesh |
| Filter Material | Stainless steel |
| Hose suitable for Vacuum Plug | Hose with Inner Diameter 5 and Outer Diameter 8 |
| Whether the Vacuum Plug is Self-sealing or not | No |

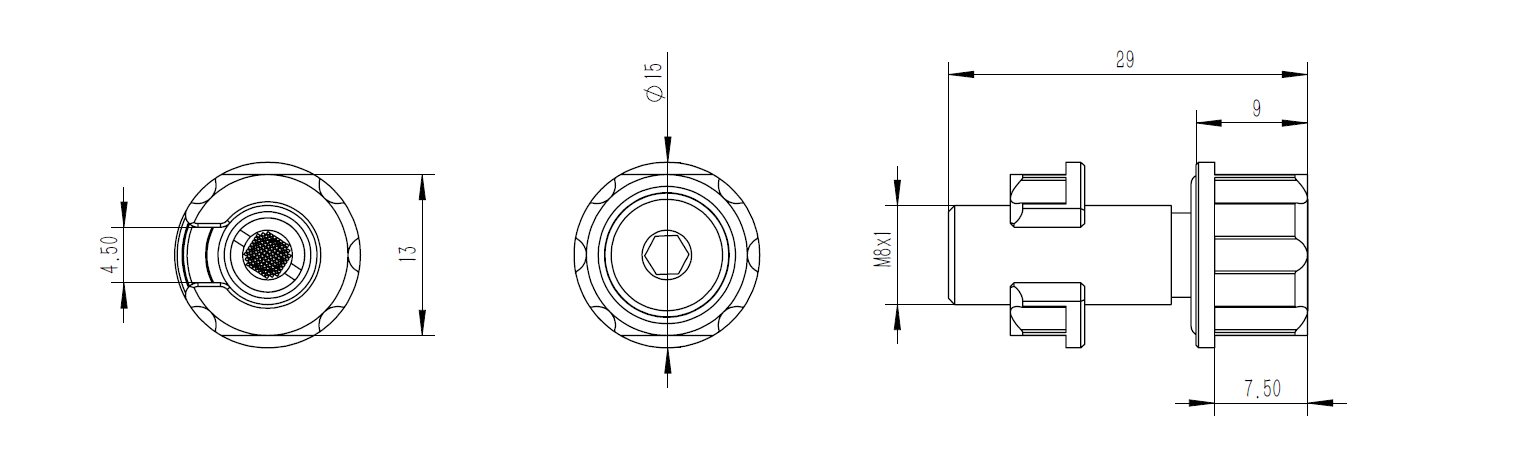

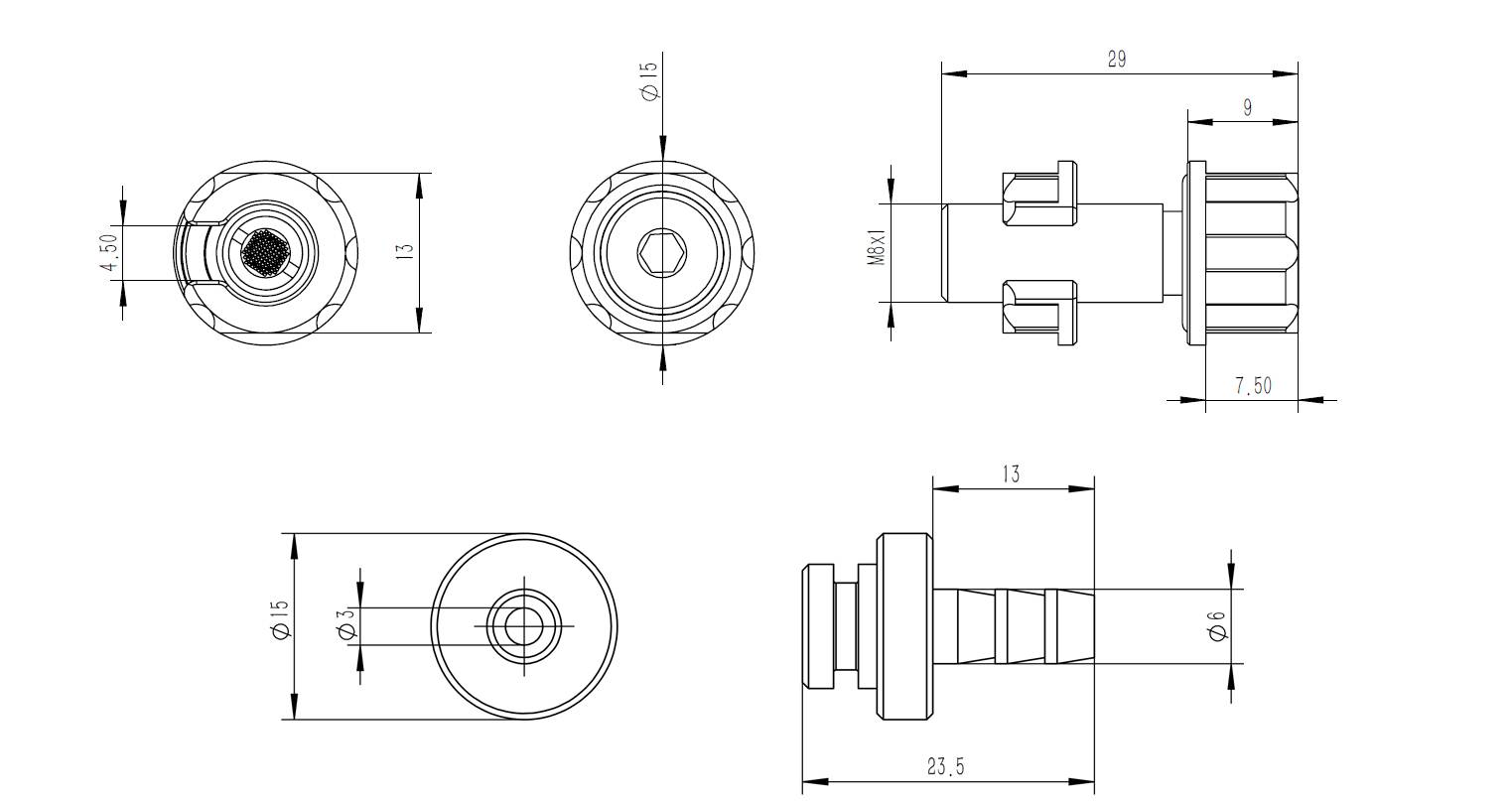

Dimensions:

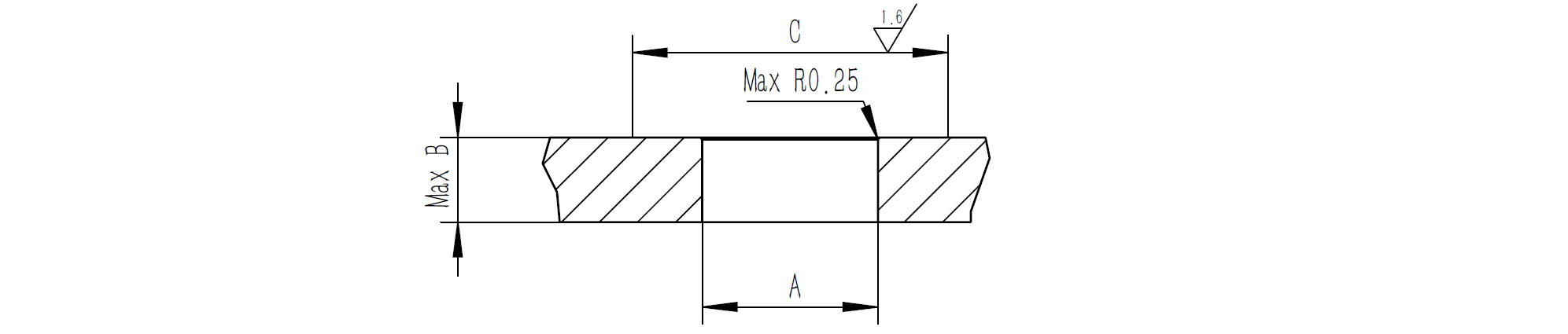

Recommended Size:
| Recommended Size: | Enclosure Vent |
|---|---|
| Recommended Bulkhead Through Hole Size (A) | Ø8.1±0.1 / Threaded |
| Hatch Cover Thickness (B) | 14 |
| Surface Range (C) | 17 |
Guides
FAQ
● Does the plug need to be tightened very tightly?
No, it's not necessary. Just tighten it until it's flush with the top. The tightness doesn't affect the sealing effect, and overtightening can make it harder to remove.
●
Under what circumstances is it needed?
It's recommended to have one for any watertight enclosure to facilitate ventilation and disassembly between the inside and outside.
● When removing the plug, will the enclosure vent loosen and come off?
It's possible. It's suggested to use threadlocker on the bulkhead and nut, but please avoid applying threadlocker to the plug.
● Is it necessary to apply lubricating grease every time the plug is removed?
It's recommended to apply lubricating grease each time. This process allows for checking if the sealing ring is worn and lubricating grease makes the installation smoother.
