Description

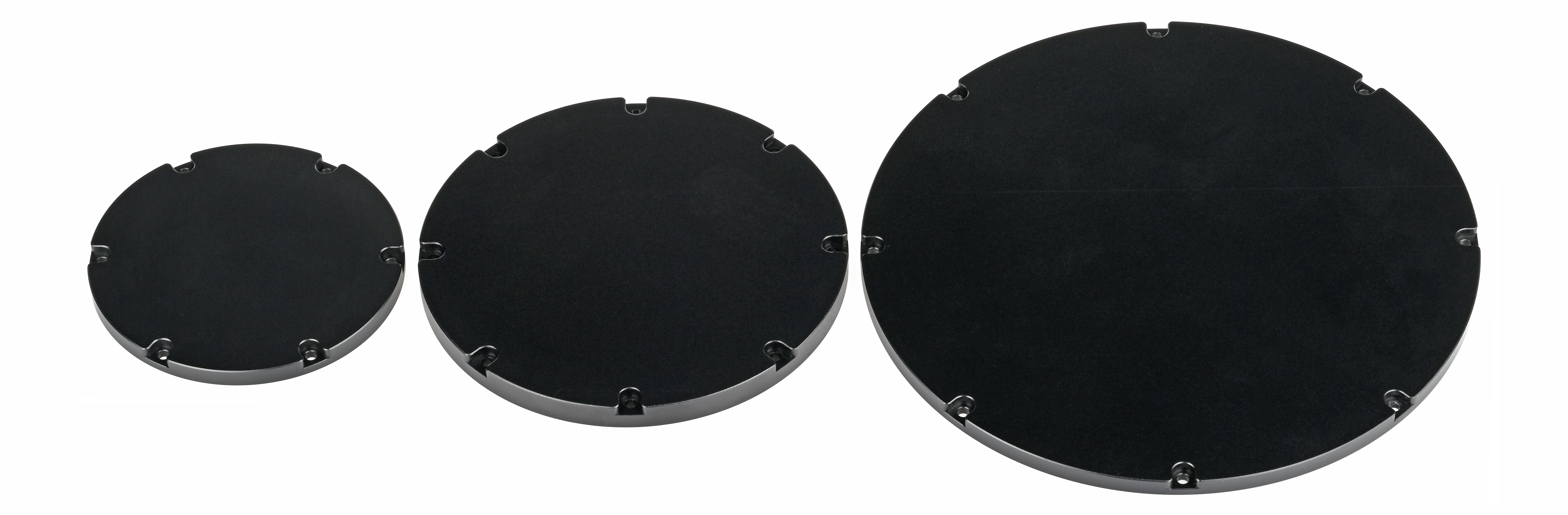

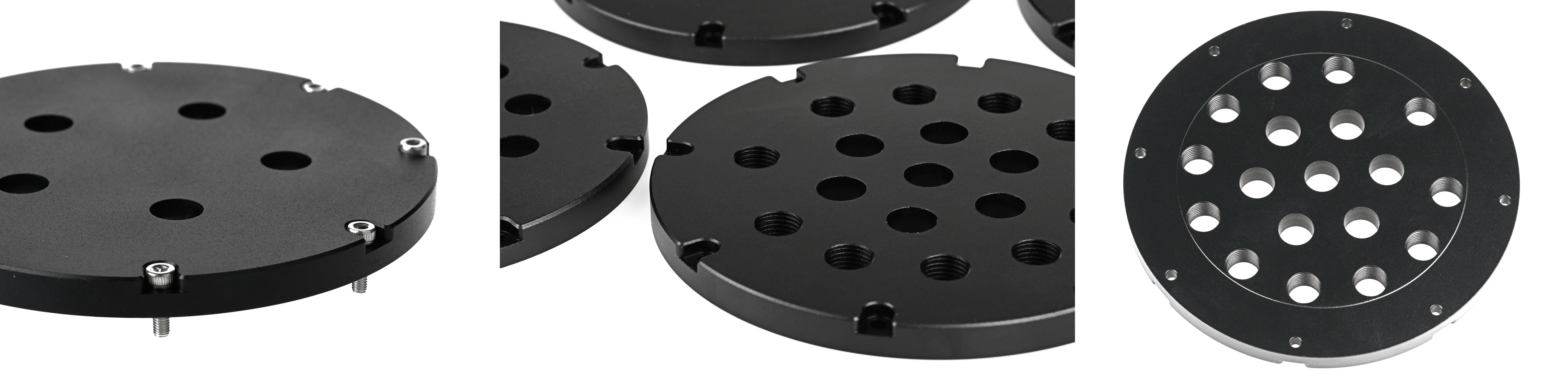

The end cap for use with the SUBLAB Series watertight enclosures. It is made of aluminum material and features a recessed step on the back to ensure a smooth contact surface for O-rings. The screw holes are countersunk and the screws do not protrude.
Transparent acrylic end cap is not available. It is not recommended that acrylic as threading or window end cap material. After testing, acrylic sheet is difficult to control the pressure resistance of each piece is similar, the mounting holes are easy to crack. If you need a transparent window can choose another Glass Window Flange. But when the pressure resistance requirements are not high, you can download the outer contour drawings and look for a laser cut acrylic business or an advertising store to cut it.

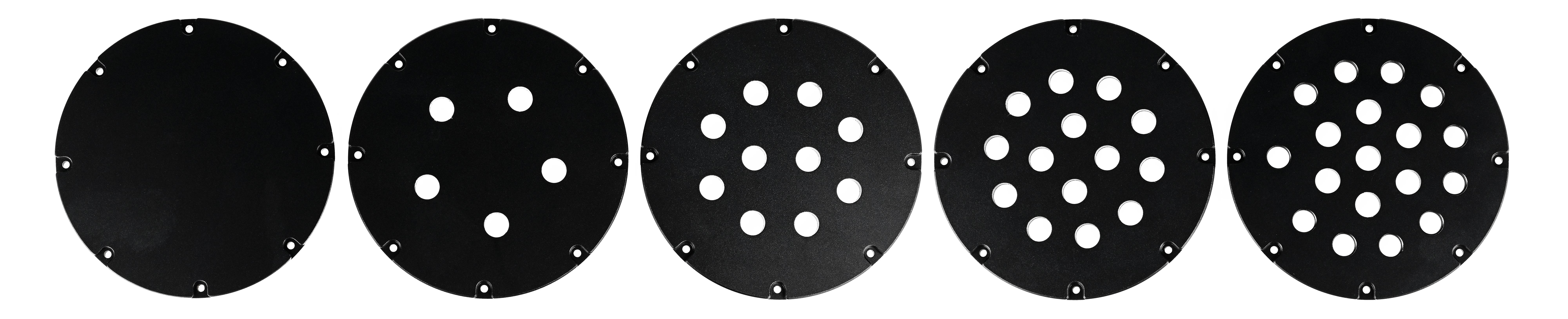

End Cap Blank(no holes) can be lined up and drilled for use by utilizing the matching hole opening stickers.
Shipping List
- 1 x End Cap
- 8 x Screw
- End Cap Blank(no holes) comes with an set of opening stickers
Specifications

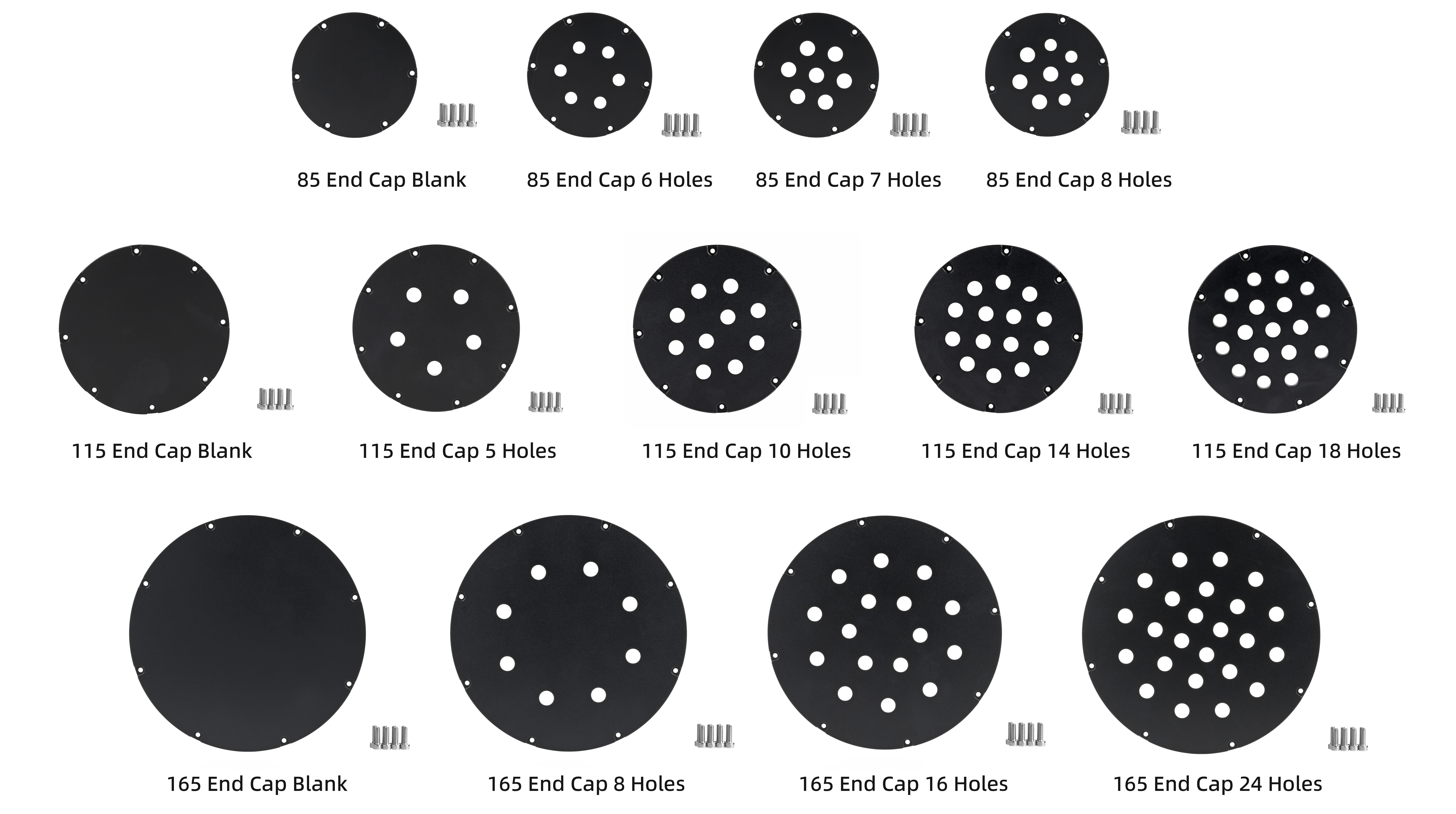

| Item | SKU | Material | Weight | Unit Price(US$) |
|---|---|---|---|---|
| 85 End Cap Blank(no holes) | 14010701-0100 | Black Anodized Aluminum | 89g | 9 |
| 85 End Cap 6 Holes(6×8.1 Thru) | 14010701-0106 | Black Anodized Aluminum | 83g | 9.5 |
| 85 End Cap 7 Holes(7×10.1 Thru) | 14010701-0107 | Black Anodized Aluminum | 79g | 10 |
| 85 End Cap 8 Holes( 4×8.1 Thru+4×10.1 Thru) | 14010701-0108 | Black Anodized Aluminum | 80g | 10.5 |
| 115 End Cap Blank(no holes) | 14010701-0200 | Black Anodized Aluminum | 226g | 12 |
| 115 End Cap 5 Holes(5×10.1 Thru) | 14010701-0205 | Black Anodized Aluminum | 214g | 13 |
| 115 End Cap 10 Holes(10×10.1 Thru) | 14010701-0210 | Black Anodized Aluminum | 207g | 14 |
| 115 End Cap 14 Holes(14×10.1 Thru) | 14010701-0214 | Black Anodized Aluminum | 200g | 15 |
| 115 End Cap 18 Holes( 11×10.1 Threaded+7×10.1 Thru) | 14010701-0218 | Black Anodized Aluminum | 194g | 16 |
| 165 End Cap Blank(no holes) | 14010701-0300 | Black Anodized Aluminum | 340g | 18 |
| 165 End Cap 8 Holes( 8×10.1 Thru) | 14010701-0308 | Black Anodized Aluminum | 327g | 19.5 |
| 165 End Cap 16 Holes( 16×10.1 Thru) | 14010701-0316 | Black Anodized Aluminum | 316g | 21 |
| 165 End Cap 24 Holes( 24×10.1 Thru) | 14010701-0324 | Black Anodized Aluminum | 309g | 22.5 |

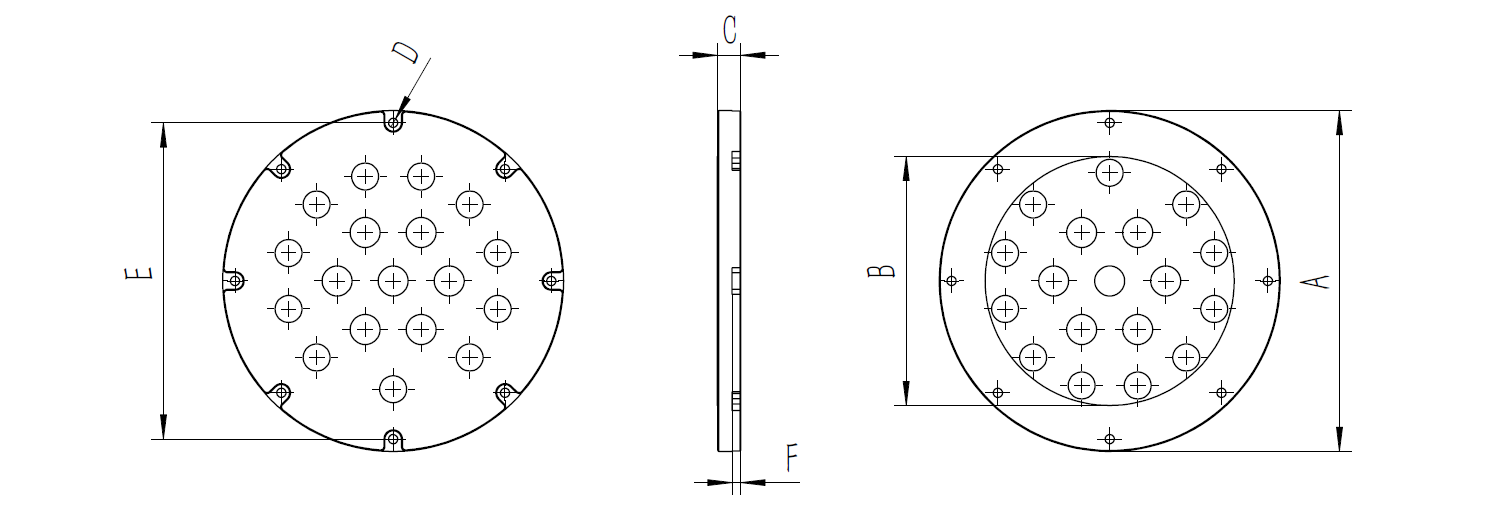

| Item | Outer Diameter A | Surface of Subsidence B | Thickness C | Mounting Holes D | Screw Hole Circle E | Mounting Hole Subsidence F |
|---|---|---|---|---|---|---|
| 85 End Cap | 85 | 58 | 6 | 6 x Ø3.1 | 78 | 3 |
| 115 End Cap | 115 | 84 | 8 | 8 x Ø3.1 | 106.7 | 3 |
| 165 End Cap | 165 | 136 | 6 | 8 x Ø3.1 | 158 | 3 |
Guides
FAQ
● Can it still be used if the contact surface of O-ring is accidentally scratched?
No, it cannot be used, as there is a risk of leakage.
● Are they compatible with SUBLAB aluminum tubes, acrylic tubes and flanges?
Yes, they are compatible with tubes of the same size and can be directly replaced.
● Is it a defective product if there are a few lines on the surface?
No, a few lines are not scratches, they are marks left by the tool during processing, they can be used normally without affecting the sealing.
● Whether to apply grease to O-rings every time?
Yes, applying lubricating grease has several benefits: it helps remove dust and impurities from O-rings during application, allows O-rings to adhere to the groove for easy assembly.
● What if I want to use acrylic with perforations for the end cap despite the recommendation?
You can download the DXF-format contour diagram of the end cap, draw the perforations yourself, and then have the acrylic sheet laser-cut at a local shop or find a service that offers laser cutting.
● How do I use a end cap with threaded holes?
When installing threaded holes for items such as cable penetrators or switches, you do not need nuts. After placing the O-ring, simply tighten the penetrators.
● Why is there no M14 or M16 hole for 165 end cap?
