Description

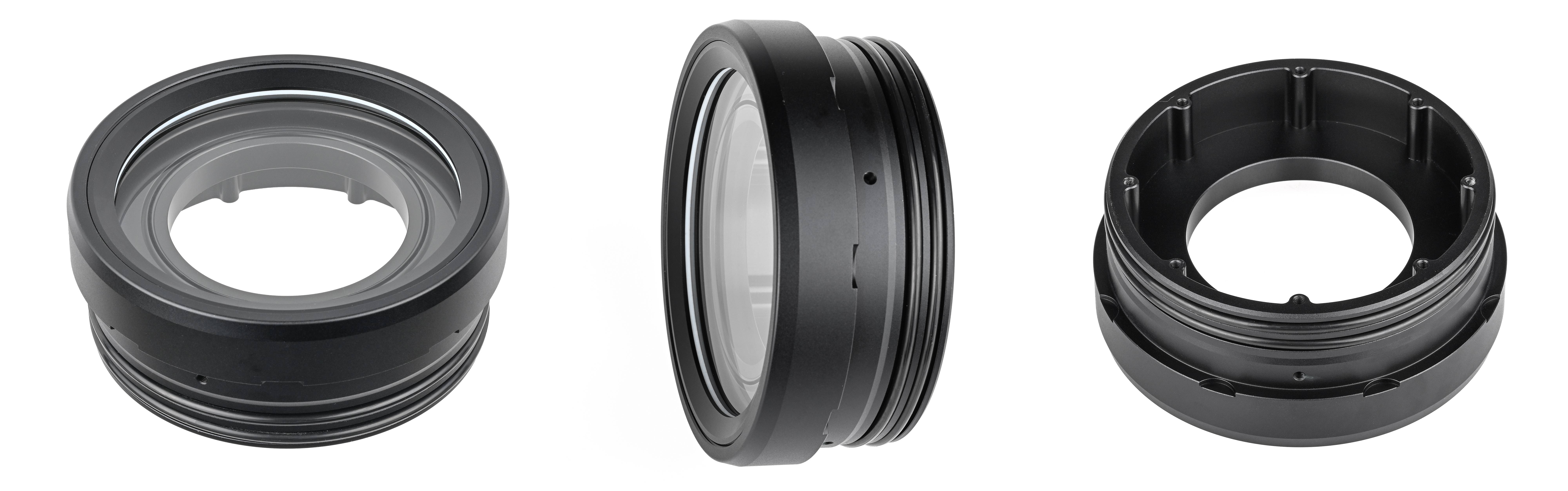

The glass flange end cap for SUBLAB series watertight enclosures can be used as viewports for cameras or optical sensors.
It is made of industrial explosion-proof tempered glass with a special aluminum flange. Pressure-resistant up to 300 meters water depth. It can be used in combination with Enclosure Acrylic Tube or Enclosure Aluminum Tube.

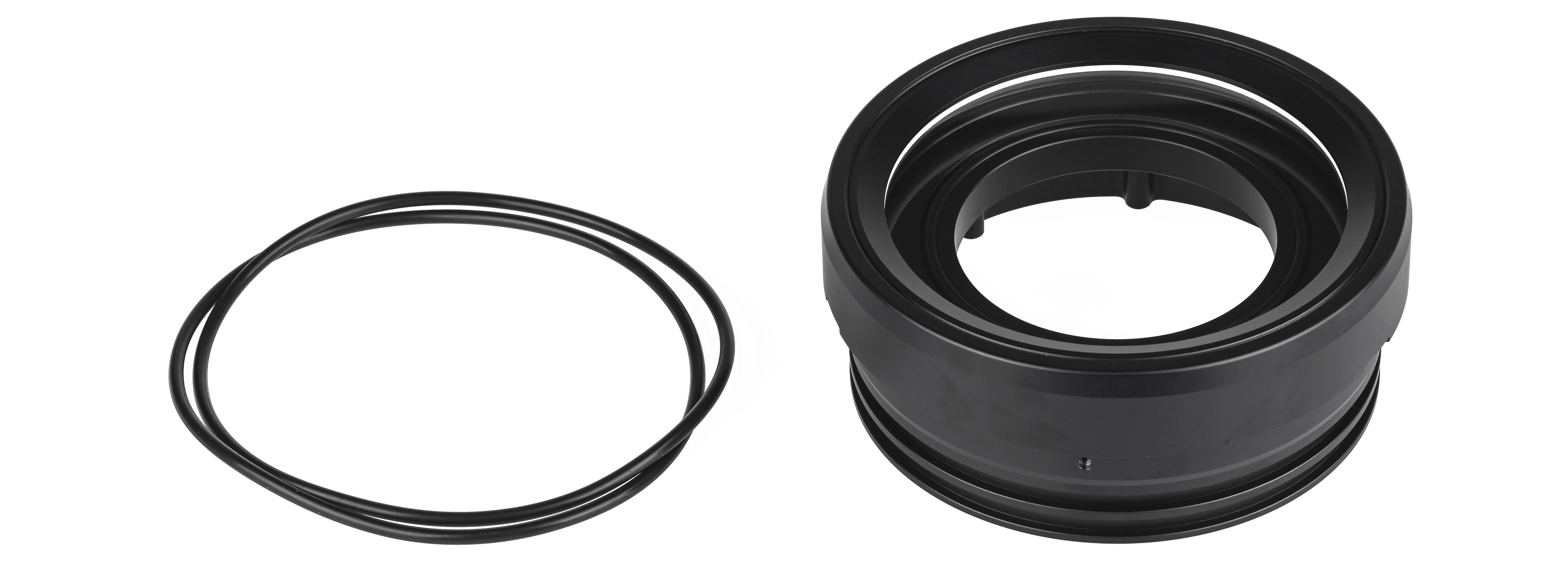

Shipping List
- 1 x Glass Flange End Cap
- 2 x O-ring
参数
| Item | SKU | Material | Weight | Unit Price(US$) |
|---|---|---|---|---|
| 115 Glass Flange End Cap | 14011005-0001 | Aluminum+Tempered Glass | 559g | 65 |

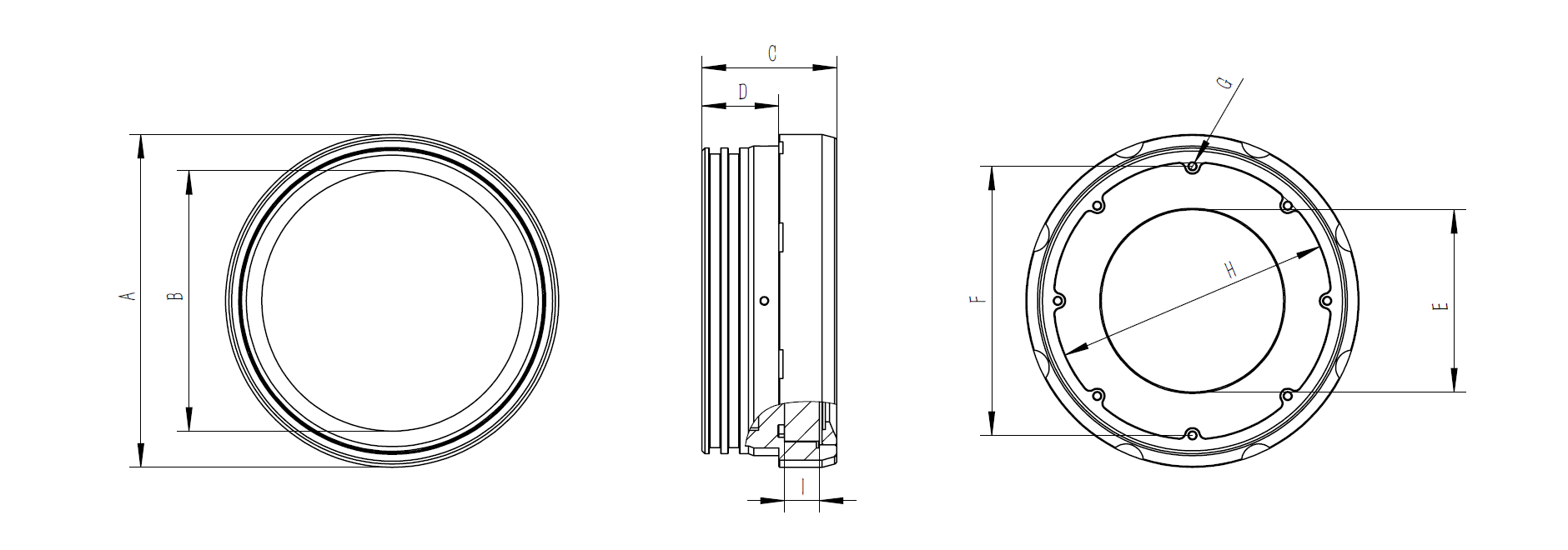

| Item | Outer Diameter A | Pressure Ring Inner Diameter B | Height C | Piston Height D | Visual Diameter E | Internal Mounting Hole Distance F | Mounting Hole G | Inner Diameter H | Glass Thickness I | Side-threaded Hole |
|---|---|---|---|---|---|---|---|---|---|---|
| 115 Glass Flange End Cap | Ø115 | Ø90 | 46.5 | 26.5 | Ø63 | Ø93 | 8xM3 | Ø95.5 | 12 | M3 |
| Spec | 115 Glass Flange End Cap |
| Pressure Resistance Depth | 300 meters |
| Glass Thickness | 12 |
| Glass Bending Strength | Average Value 100Mpa |
| Glass Hardness | Mohs Hardness Grade 7 |
| Transmittance | 95% |
| Glass Material | High Borosilicate with High Temperature Resistance. |
Guides
FAQ
● Can I remove the glass by myself?
No. It can only be removed with a special tool.
● What is the difference between it and acrylic end cap?
The glass flange end cap has better pressure resistance, better light transmittance, flatter, explosion-proof, and is less prone to scratches.
● Can it still be used if the contact surface of O-ring is accidentally scratched?
No, it cannot be used, as there is a risk of leakage.
● Is it common with SUBLAB aluminum tubes, acrylic tubes and flanges?
They are compatible with the same size and can be replaced directly.
● Whether to apply grease to O-rings every time?
Yes, applying lubricating grease has several benefits: it helps remove dust and impurities from O-rings during application, allows O-rings to adhere to the groove for easy assembly, and ensures smooth insertion into tubes.
